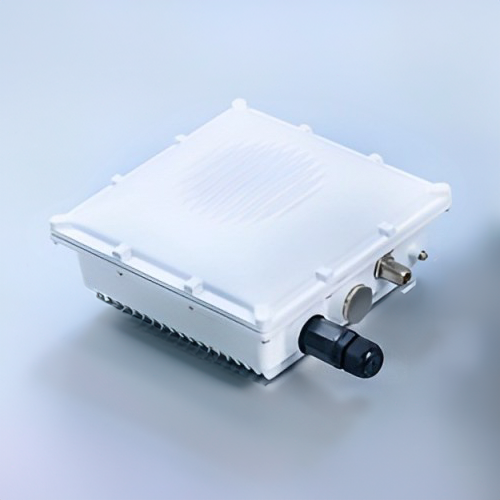

Description Overview 4g or Ethernet or WiFi Wireless Data Transmit gateway GAotek is an outdoor gateway based on the low-power wide area network LoRaWANprotocol, which can connect to standard LoRaWAN terminals and perform two way communication.The gateway connects the gateway device to the NS (network server) through a standard Ethernet,and supports network and firewall functions. At the same time, it supports 2.4G WiFi and LTE (optional) for uplink communication connection. It supports the MQTT Bridge function and can beconnected to a third-party platform through MQTT Integration. Features OpenWRT software program that supports LoRaWAN and network configuration Built-in radiator for heat dissipation Access to private or public (TTN) LoRa network server Support TF card storage method Suitable for use at indoor ambient temperature Support optional LTE 4G function support Technical Specifications Processor MT7628, DDR2RAM 128MB WiFi Function Frequency 2.400 to 2.4835GHz RX sensitivity -95dBm (minimum), TX power: 20dBm (maximum) Operating channe 2.4GHz: 1 to 13 LoRa Function SX1301 Mini PCIe card 8 lanes RX sensitivity -142dBm (minimum), TX power: 27dBm (maximum) Frequency EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865 Mobile Cellular Network Support optional Quectel EG95-E or EG95-NA LTE CAT 4 network, not supported by default Power Supply DC 12 V per 1 A Power Consumption 12W (typical value) Ethernet RJ45 Console RJ45 (RS232) Single Package Size 7.87 in x 7.87 in x 7.87 in (20 cm x 20 cm x 20 cm) Single Gross Weight 10.58 oz ( 300 g )
