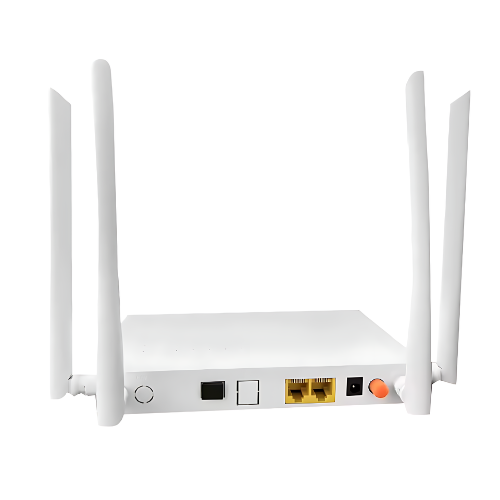

2GE 4G 5G WiFi EPON/GPON ONT with Auto-Configuration and TR069 Support – GAOTek
$61.84
$96.47
Description Overview GAOTek 2GE 2.4GWiFi 5GWiFi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which has high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3. Support full management of HGU devices through OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different services. And they are fully compliant with technical regulations such as IEEE802.3ah> ITU-T G.984.x and technical requirement of GPON Equipment (V2.0 and above version) from China Telecom. Features Support full management of HGU functions Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade Integrated OAM/OMCI remote configuration and maintenance function Support rich QinQ VLAN functions and IGMP Snooping multicast features Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset Support TR069 one-key batch configuration Support 802. 11 a/b/g/n/ac WiFi(2 x 2T2R) function Support NAT, Firewall function Support IPv4 and IPv6 dual stack. Technical Specifications Technical item 2 GE 2 4 GWiFi 5 GWiFi PON interface 1 G/ EPON port (EPON PX2 0 and GPON Class B ) Receiving Sensitivity < to 2 8dBm Transmitting optical power 0 to 4 dBm Transmission distance: 2 0KM Wavelength Tx 1310nm, Rx 1490nm Optical interface SC or APC connector LAN interface 2 x 10 or 100 or 1000Mbps auto adaptive Ethernet interfaces, Full or Half, RJ4 5 connector WiFi interface Compliant with IEEE802. 1 1 a or b or g or n or ac 2.4GHz Operating frequency 2.400 to 2.483GHz 5.0GHz Operating frequency 5. 150-5.825GHz Support MIMO, 2 x 2T2R, 5 dBi external antenna, rate up to 1. 1 67Gbps Support multiple SSID TX power 11n 22dBm or 1 1ac 24dBm LED POWER, PON, LOS, LAN2, LAN1 ,2.4G ,5G, FXS, RF Power supply DC 12V or 1.5A Power supply <9W Net weight 11.29 oz (0.32Kg) Operating condition Temperature 32 °F to 122 °F (0 °C to 50 °C) Humidity 1 0% to 9 0% (non- condensing) Storing condition Temperature -22 °F to 140 °F (-30 °C to 60 °C) Humidity: 1 0% to 9 0% (non- condensing) Dimension 9.57 in x 5.94 in x 1.18 in (243 mm x 151 mm x 30 mm)
