Home Lock Device Chipset Nordic nRF52840 USB Supply 1.7 V to 3.3 V IPX4 Antenna – GAOTek
$43.29
$54.55

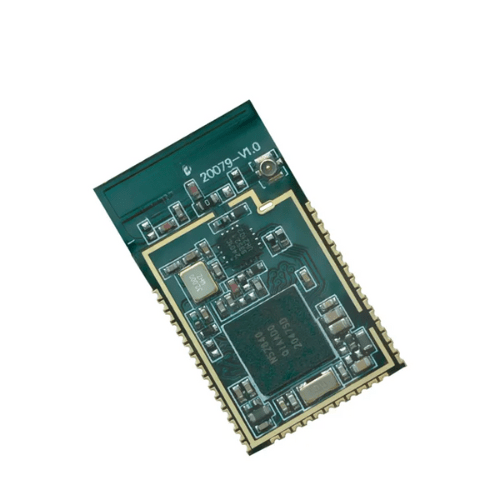

Description Overview GAOTek home lock device with nordic chipset is based on Nordic nRF52840 Soc, the nRF52840 SoC is an advanced, highly flexible single chip solution for today’s increasingly demanding ULP wireless applications for connected devices on our person, connected living environments and the IoT at large. Technical Specifications Chipset Nordic nRF52840 Power Supply USB Supply, 1.7 V to 3.3 V TX Power 0 dbm to 22 dbm ANT Type IPX4 Antenna Distance 0 in to 23622 in (0 mm to 600000 mm) GPIO 44 Work Temperature -40 °F to 185 °F (-40 °C to 85 °C) Protocol Blue tooth, Thread, Matter, Zigbee, Bluetooth Mesh, ANT, 802.15, 4 or 2.4 GHz proprietary Support nRF Connect For reprogramable or Debug Security 128-bit AES CCM, ECBB, AAR Arm Trust Zone Crypto Cell 310 Peripheral GPIOS, QSPI, SPI, TWI, I2S, PDM, QDEC, NFC-A tag, ADC, or USB Microprocessor 64 MHz 32-bit Arm Cortex-M4 with FPU Memory 1 MB Flash, RAM: 256 kb On-air Data Rate 2 Mbps, 1 Mbps, 500 kbps, 125 kbps 802.15.4: 250 kbps Size 1.075 in x 0.63 in x 0.06 in (27.30 mm x 16 mm x 1.60 mm)
