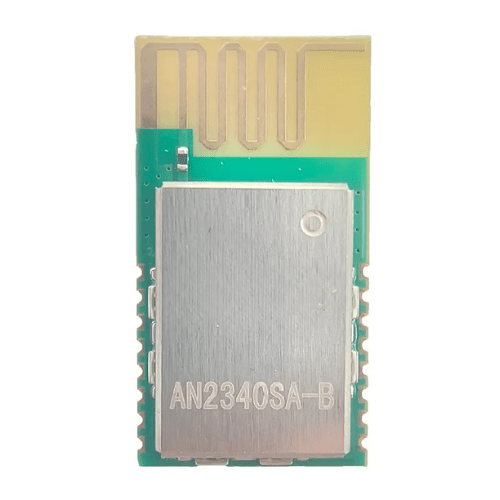

AT Command Zigbee Wireless Bluetooth Mesh Support for Low-power Nodes Kit – GAOTek
$50.63
$76.45
Description Overview GAOTek AT Command ZigBee is optimized for low power wireless communication with on‐chip dual image Over the Air Download (OAD) support in Building automation (wireless sensors, lighting control, beacons), asset tracking, medical, retail EPOS (electronic point of sale), ESL (electronic shelf label), and Personal electronics (toys, HID, stylus pens) markets. Features Full qualified Bluetooth software protocol stack Bluetooth mesh support for low-power nodes Zigbee protocol stack in the Software Development Kit Ultra-low standby current (0.7 μA) with RTC and RAM retention for extended battery life. Very low average radio current and connection interval Technical Specifications Chipset Ti: CC2340R52E0RKPR Bluetooth Version BLE 5.3 I/O 12 Frequency 2.4 GHz Flash 512 KB RAM 36 KB Power Supply 1.80 V to 3.80 V TX Power 8 dBm TX Sensitivity -102 dBm RX Current (Typical) 5.30 mA TX Current (Typical) 12 mA Standby Current (Typ) 0.70 μA Range 5511.81 in (140000 mm) Size 0.47 in x 0.87 in x 0.12 in (12 mm x 22.13 mm x 3.2 mm)
