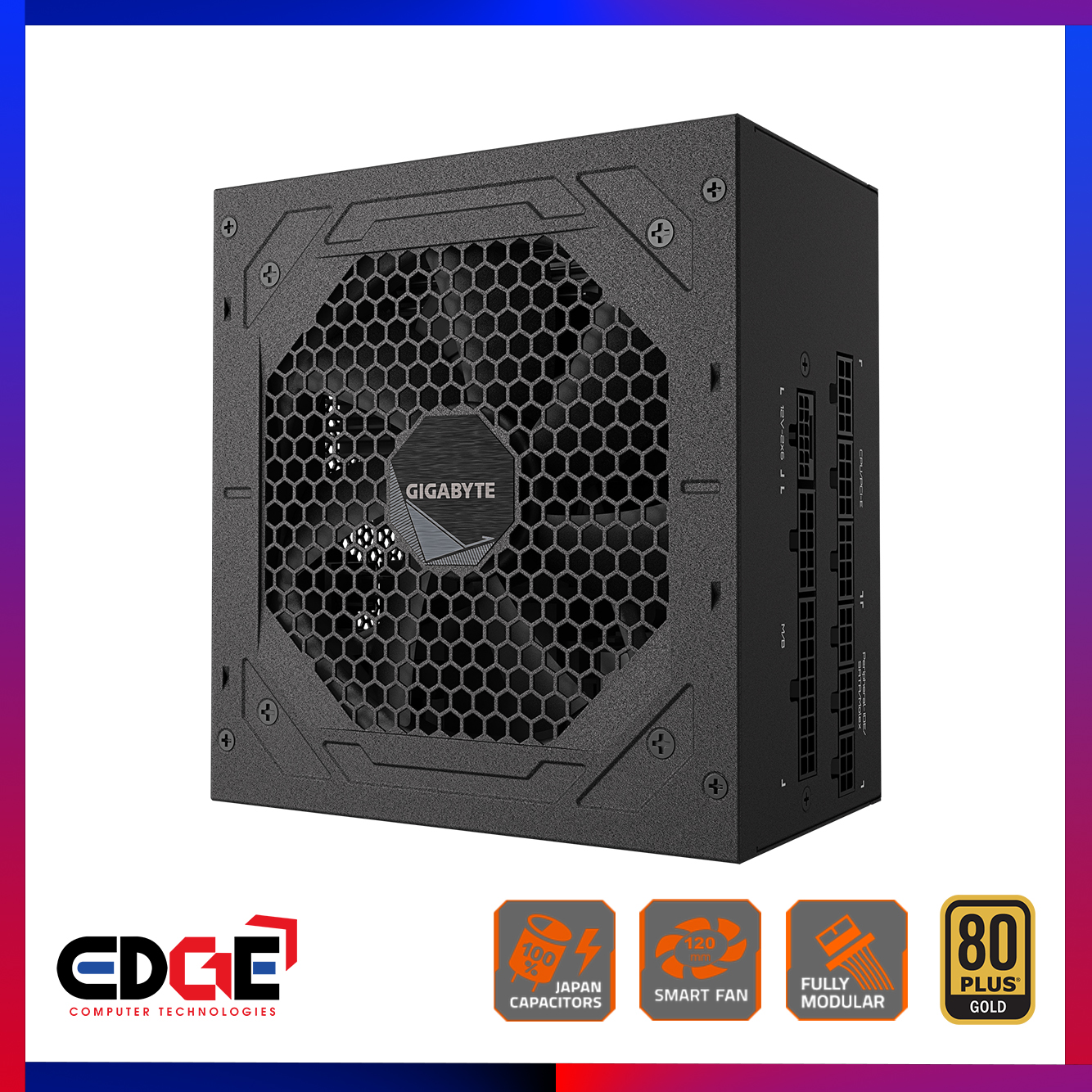

Description Specifications Model GP-UD850GM PG5 V2 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing (HYB) Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Embossed, All black Connectors ATX/MB 20 4 Pin x 1 : 610mm*1 CPU/EPS 4 4 Pin x 2 : 650mm 200mm*1 PCI-e 6 2 Pin x 4 : 600mm 150mm*2 PCI-e 12 4 Pin x 1:700mm*1 SATA x 8 : 600mm 150mm 150mm 150mm*2 4 Pin Peripheral x 3 4-Pin Floppy x 1 : 500mm 150mm 150mm 150mm*1
