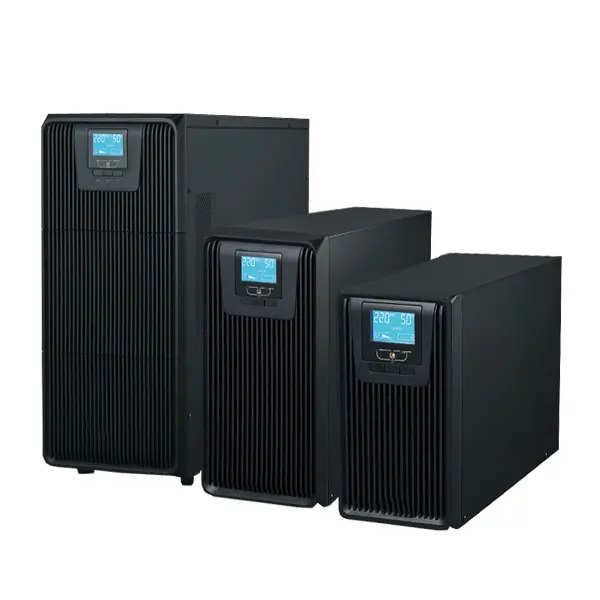

Description * Wide range of input voltage while input PF>99% * Output PF of 0.9, more powerful load capability * Full protection of overvoltage, short circuit and over temperature * Abundant interface：RS232,USB, SNMP, Intelligent Card * LCD/LED display, monitoring all the operations status * Auto fan speed adjust * Capacity: 10KVA * Input Voltage Range: 50%-125%(220VAC/230VAC/240VAC) * Input Power Factor: ≥0.99 * Input Frequency: 40Hz～70Hz * Output Power Factor: 0.9 * Output Voltage: 220V/230V/240V * Efficiency: 93.0% * Battery Voltage: 192VDC / 9Ah * Max Charging Current: 5A for External type, 1A for Internal Type. * W*D*H(mm): 250*504*480 for External , 250*562*650 for Internal * Weight(Kg): 20 for External type , 65 for Internal type
