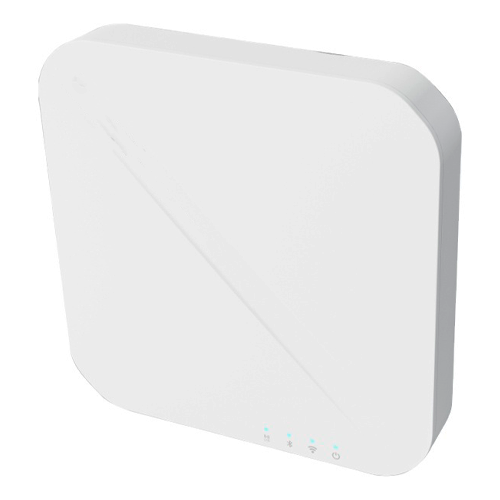

Advanced Zigbee WiFi BLE Gateway with Linux OS Support – GAOTek

Description Technical Specifications Category Specifications RAM DDR4 1GB CPU PX30 Quad-core CortexA35 eMMC Up to 8GB OS Linux Power Supply USB Type-C 5V or 2A Reset Button Hole Button, Restores to Factory Settings after 5 sec Switch On or off Power Network Interface CAT-5 or CAT-5E for Data and POE (44 to 57V) USB USB2.0 SIM Card Micro SIM Card Indicator LEDs Power & Battery, BLE, Wi-Fi, LTE Indicators Antenna Array Direction 4X4 Antenna Array Installation Method Ceiling RTC Real-time Clock with On-board Battery Cooling Heat Dissipation via Silicone or Aluminum IP Rating IP53 Positioning Accuracy 1 to 3.28 ft (0.3M to 1M) Detect Range 360° Antenna, 2.4GHz Angle of Arrival Measurement Current 350mAH at 5V Connector in the Board PCI Express Debug 1X Serial Console via UART-to-USB Bridge Serial 1 RS232, 1 RS485 (2 wires) Expansion Connector 2SPI, 2UART, I2C, 4 xGPIO Operating Temperature 14°F to 140°F (-10°C to 60°C) Storage Temperature -40°F to 185°F (-40°C to 85°C) Operating Humidity 10%RH to 90%RH
