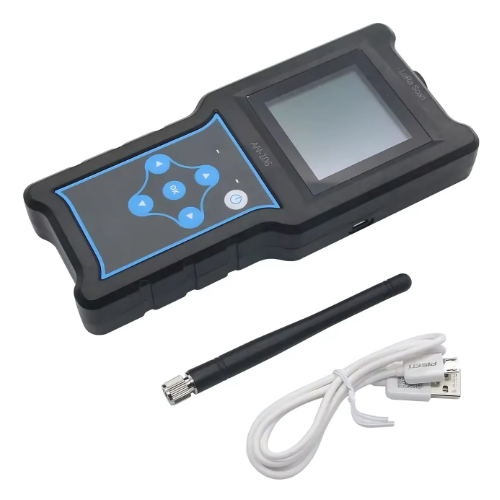

LoRaWAN Network Analyzer with GPS & LCD Display – GAOTek

Description Features Support LoRa wireless communication Support EU868/US915/AS923/AU915 Support GPS locating with the accuracy of within 16.4 ft Built-in lithium battery to support the system for 36 hours LCD screen to support text interface display Full plastic shell structure design Wide working temperature range Support real-time communication with gateway Support RSSI and SNR of gateway transmission Support statistics of packet loss rate of communication between gateway and nodes   Technical Specifications Chipset Smart chip Application Network analyzer Type RF module IoT Sensor LoRaWAN device Master Control CPU ARM 32 bit-cortex-M3 kernel Main Frequency: 32 MHz Memory 128 KB flash 16 KB RAM 4 KB EEPROM Hardware Parameters Sensor Built-in GPS Buzzer Built-in LED Indicator 1X power indicator, red 1X charging indicator, green Antenna External LoRa antenna, built-in GPS ceramic antenna Wireless Parameter Data Rate 300 bps to 5.4 kbps Working Frequency EU868; US915; AS923 Protocol LoRaWAN™ Max. Transmitter Power 17 dBm RX Sensitivity -140 dBm DC Specification Power Supply Built-in rechargeable lithium battery Input Voltage Dc 3.7 V Transmit Status Current 150 mA Electrical Specification Overall Power Consumption 110 mW Battery Capacity 3.7 V/3500 mAh Working Temperature Range -4 °F to 158 °F (-20 °C to 70 °C) Working Humidity 10% to 90% Physical Parameter IP Grade IP65 Dimension 7.48 in × 3.38 in × 1.18 in (19 cm × 8.6 cm × 3 cm)
