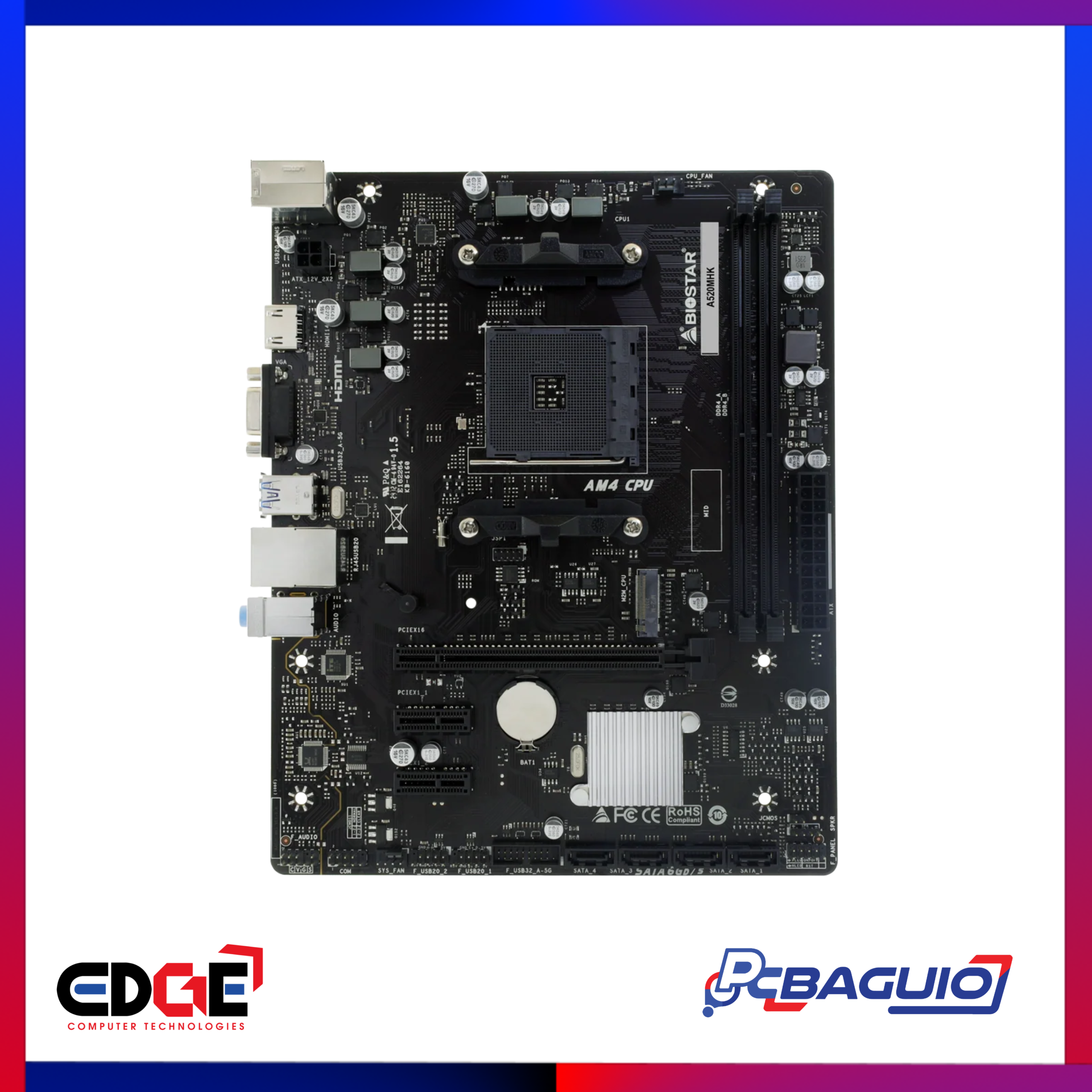

Description SPECIFICATIONS CHIPSET AMD A520 CPU AMD Socket AM4, support for: AMD Ryzen™ 3000 Series processors AMD Ryzen™ 4000 G-Series processors AMD Ryzen™ 5000 Series processors AMD Ryzen™ 5000 G-Series processors MEMORY 2 x DDR4 DIMM slots, up to 64GB Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 MHz Dual-channel memory architecture Supports non-ECC Unbuffered DIMM ONBOARD GRAPHICS Integrated Graphics (APU required): 1 x HDMI port 1 x VGA port *Graphics output works only with Ryzen APUs. AUDIO Realtek® HD Audio 7.1-channel High Definition Audio LAN Realtek® Gigabit LAN (10/100/1000 Mbps) EXPANSION SLOTS 1 x PCIe 3.0 x16 slot 1 x PCIe 3.0 x1 slot STORAGE INTERFACE 1 x M.2 slot (PCIe 3.0 x4, NVMe supported) 4 x SATA III 6Gb/s ports USB 2 x USB 3.2 Gen1 (rear) 4 x USB 2.0 (rear) 1 x USB 3.2 Gen1 header 2 x USB 2.0 headers INTERNAL I/O CONNECTORS 1 x 24-pin ATX power connector 1 x 8-pin CPU power connector 1 x CPU fan header 2 x System fan headers Front panel connectors Front panel audio header BACK PANEL CONNECTORS 1 x HDMI 1 x VGA 2 x USB 3.2 Gen1 4 x USB 2.0 1 x RJ-45 LAN 3 x Audio jacks BIOS UEFI BIOS BIOS Flash support OPERATING SYSTEM Windows 11 64-bit Windows 10 64-bit FORM FACTOR Micro-ATX
