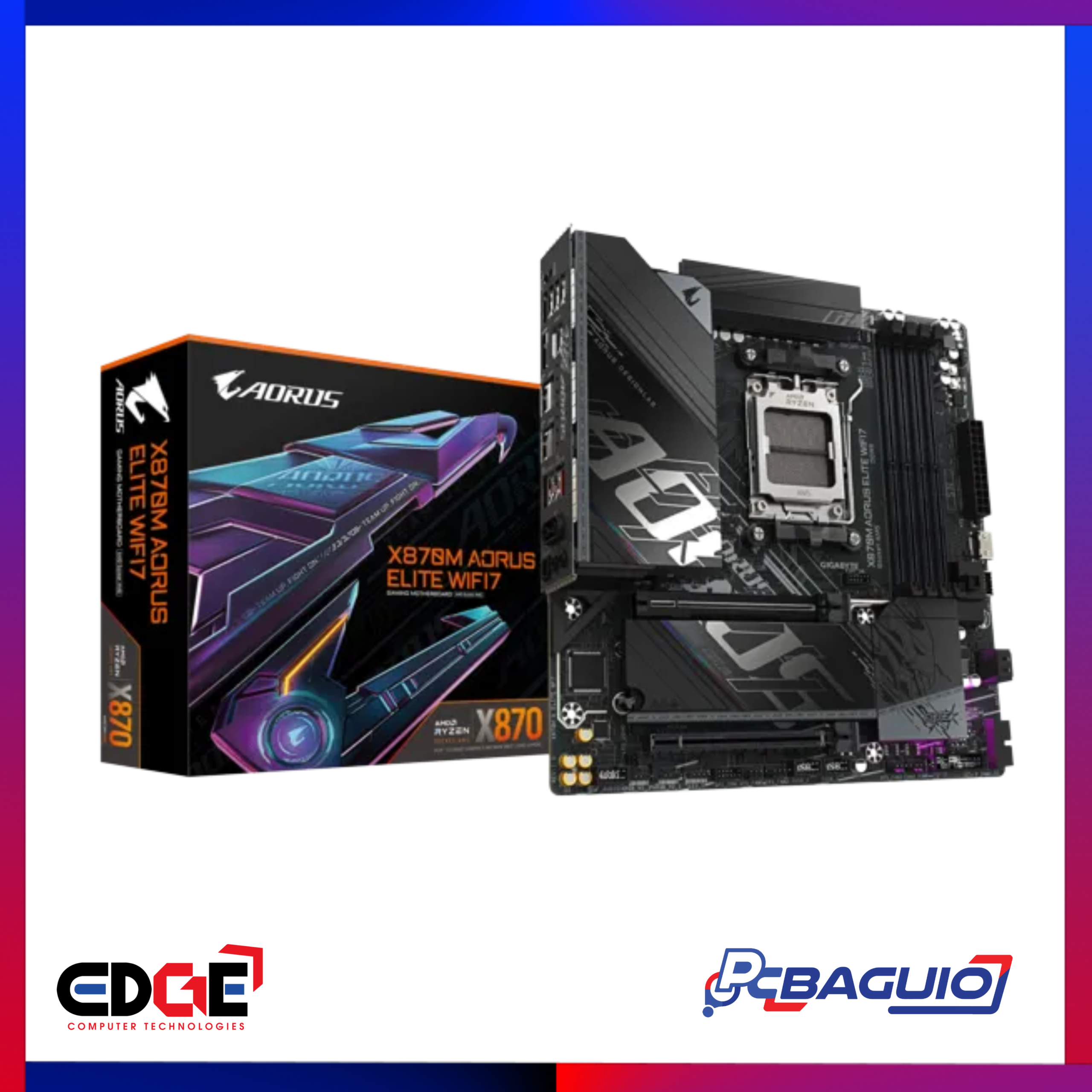

Description SPECIFICATIONS CHIPSET AMD X870 CPU AMD Socket AM5, support for: Ryzen™ 7000 Series Ryzen™ 8000 Series Ryzen™ 9000 Series MEMORY Support for DDR5 8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600/5200 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256GB of system memory Dual channel memory architecture Support for AMD EXPO™ and XMP memory modules ONBOARD GRAPHICS Integrated Graphics Processor support (depends on CPU): – 1 x DisplayPort, supporting up to 3840×2160@144Hz – 1 x HDMI port, supporting up to 4096×2160@60Hz (Graphics specifications may vary depending on CPU support.) AUDIO Realtek® High Definition Audio CODEC 2/4/5.1/7.1-channel audio support Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip WIRELESS COMMUNICATION MODULE Wi-Fi 7 (802.11be) Bluetooth® 5.4 Support for 2.4/5/6 GHz bands (Actual data rate may vary depending on environment and equipment.) EXPANSION SLOTS CPU: 1 x PCI Express x16 slot supporting PCIe 5.0 Chipset: 1 x PCI Express x4 slot supporting PCIe 4.0 STORAGE INTERFACE 1 x M.2 slot (PCIe 5.0 x4) 2 x M.2 slots (PCIe 4.0 x4) 4 x SATA 6Gb/s connectors Support for RAID 0/1/10 USB 1 x USB Type-C® (USB 3.2 Gen2x2) 2 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 4 x USB 2.0 INTERNAL I/O CONNECTORS 24-pin ATX power connector 8-pin CPU power connector CPU fan header Pump header System fan headers ARGB and RGB headers Front panel header Front USB-C header USB 3.2 header USB 2.0 headers Trusted Platform Module header Clear CMOS jumper BACK PANEL CONNECTORS DisplayPort HDMI USB-C USB 3.2 ports USB 2.0 ports RJ-45 LAN port Wi-Fi antenna connectors Audio jacks I/O CONTROLLER iTE® I/O Controller Chip H/W MONITORING Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control BIOS 1 x 256 Mbit flash AMI UEFI BIOS UNIQUE FEATURES Support for GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus OPERATING SYSTEM Windows 11 64-bit FORM FACTOR Micro ATX Form Factor; 24.4cm x 24.4cm
