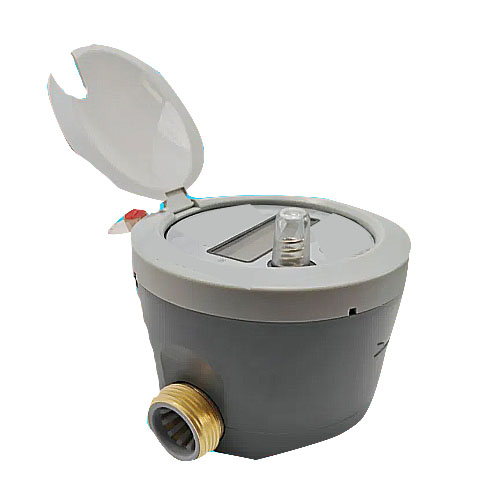

High Precision Ultrasonic Water Meter with Smart Features – GAOTek
$46.71
$57.92
Description Features Water supply metering No mechanical wear Excellent reliability Stability and consistency Diagnose battery abnormality Technical Specifications Medium Temperature Cold water Counter Instructions Digital Medium Pressure General water meter Structure Enclosure or top cover or flow sensor or digital display Environmental Class 0 Thread Bsp Tamper Record Yes Power Supply Lithium battery DC 3.6 V Range Ratio U0do U5d3 U3d at Level Measurement B Principle Speed of water meter Work Environment Dry water meter Smart System AMR or ami Permanent Flow Rate 88 ft³ per h, 141 ft³ per h (2.5 m³ per h, 4.0 m³ per h) Start Flow Rate 0.8 gal per h (3 L per h) Ratio 100, 160, 250, 315, 400, 500 Accuracy Class 2 Pressure 1.6 MPa Pressure Loss △p25 Temperature T30, T50, default T30 Data Storage 1 year of daily data storage, 24 months of historical data, (data storage mode can be customized according to customer requirements) Power Outage Protection After a power outage, the accumulated flow rate recorded before the outage and the corresponding time can be saved, and the power supply will be restored automatically after the restoration of power metering function. Communication Interface Infrared, M-BUS, RS485, NB-IoT, LoRaWAN 433 MHz, 866 MHz, 868 MHz, 915 MHz, 923 MHz, W-Mbus 433 MHz, 868 MHz, TTL, pulse (optional) Power Supply Lithium, DC 3.6 V Protection Level IP68 Electromagnetic Class E2 Installation Horizontal or vertical Dimension 8.07 in x 4.17 in x 3.3 in (205 mm x 106 mm x 84 mm)
