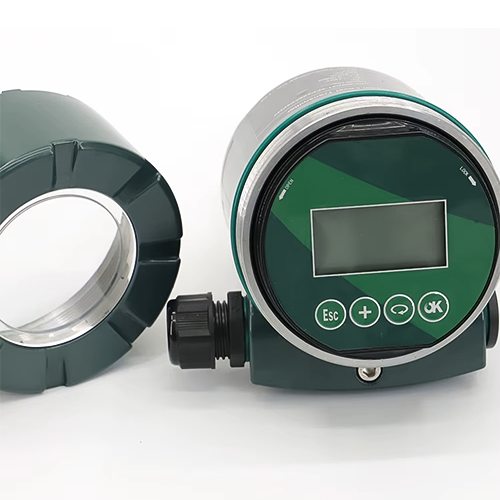

High Precision Liquid Level Radar Sensor for Tanks – GAOTek
$62.82
$122.5
Description Features Non-contract measurement with FMCW working principle The beam angle is small, and it is easier for the instrument to avoid inter from a possible obstacle Almost unaffected by corrosive vapor and foam Be more suitable for used in heavy dusty environments The radar’s antenna size is small, and it is easy to be installed The upper dead zone is smaller, it is more suitable for the level measurement storage tanks Technical Specifications Measuring Range 1,000 cm (393.7 in) / 2,000 cm (787.4 in) / 3,500 cm (1,377.95 in) Accuracy ±0.2 cm (±0.08 in) Power Supply 24V DC (Two/Four-Wire) or 220V AC (Four-Wire) Single Output 4mA to 20mA / HART Protocol Process Connection Thread or Flange Operating Frequency 80 GHz Enclosure Protection IP67 (Aluminum Housing) Explosion Proof Grade Ex ia IIC T6 Ga; Ex d IIC T6 Gb Application Chemical, metallurgical, food processing, wastewater, and various industrial tanks (e.g., acids, lyes) Features Anti-corrosion lens antenna, minimal dead zone, high precision, and easy installation Process Temperature Range -40°F to 302°F (-40°C to 150°C)
