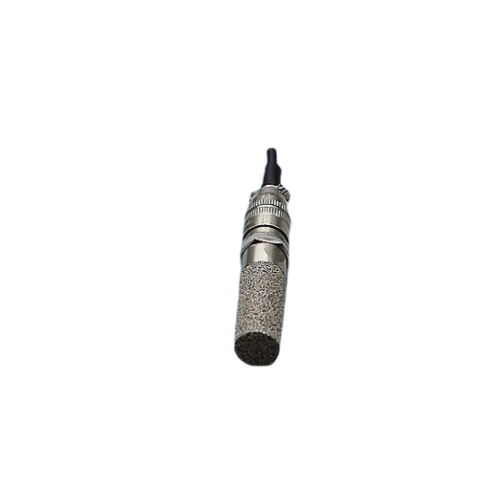

High Accuracy Stainless Steel Temperature and Humidity Sensor – GAOTek
$36.22
$45.64
Description Technical Specifications Type Temperature and Humidity Sensor Mounting Type Temperature and Humidity Sensor Use Temperature and Humidity Sensing Theory Resistance Sensor Output Switching Transducer Termination Style Wire Leads Connector Molex Probe Material Stainless Steel SS304 Series Temperature and Humidity Sensor Resistance (R25 °C) 100K Ohm Accuracy ±0.5 °C (±0.9 °F) Additional Accuracy Options ±1% or ±5% B Value 3950K ±1% Current 0.5 mA Probe Types Stainless Steel or PE or PVC More Types SHT10, SHT11, SHT15, SHT21, SHT25 etc. Shell Material Stainless Steel or Plastic Cable Material PVC or Silicone (customizable) Terminal Type Tinning or Stereo Plug (customizable) Application Agricultural Monitoring, Food Cold Chain, Fresh Air Systems, Industrial Monitoring Humidity Range 0 to 100% RH Humidity Accuracy ±3% RH or ±2% RH or ±1.5% RH (chip dependent) Temperature Accuracy ±0.54 °F (±0.3 °C) or ±0.36 °F (±0.2 °C) or ±0.18 °F (±0.1 °C) Switching Temperature -40 to 221 °F (-40 to 105 °C) Operating Temperature Range -40 to 221 °F (-40 to 105 °C) Temperature Range (Sensor Element) -40 to 1112 °F (-40 to 600 °C)
