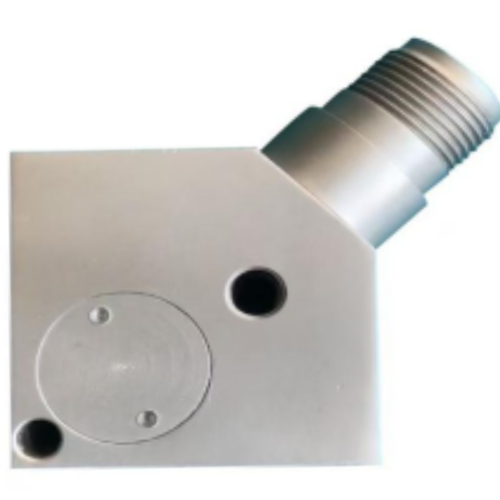

General Purpose Triaxial Vibration Sensor – GAOTek

Description Overview GAOTek – General Purpose Triaxial Vibration Sensor is designed for high-performance vibration monitoring across a wide range of industrial applications. Featuring a shear design with ceramic materials, it minimizes environmental impact and ensures excellent temperature stability. With a measurement range of 0–20 mm/s, frequency range of 1–5 kHz, and resonant frequency around 15 kHz, it delivers high resolution, low noise, and reliable sensitivity. The sensor withstands impact limits up to ±2000 g and operates effectively in temperatures from -40 to 120 °C. Built with a robust 304 stainless steel housing, it offers durable performance and long service life. Supplied with accessories including M5/BNC cables, qualification certificate, and hexagonal screw, it is ideal for versatile vibration measurement needs.    Features Shear design reduces environmental impact on signals   Ceramic Materials with Wide Temperature Coefficient  High resolution and low noise   High-cost performance.   Technical Specifications Specification  Details  Output  4 to 20 mA  Measurement Range  0 to 20 mm/s (0 to 0.79 in/s)  Frequency Range (±10%)  1 to 5 kHz  Resonant Frequency  15 kHz  Resolving Power  1 mg  Transverse Sensitivity  ≤5%  Impact Limit  ±2000 g  Insulation Resistance  >10⁹ Ω  Sensitive Parts  Ceramics, Shear  Electrical Connector  φ 0.20 in Coaxial Jack/M6  Installation Method  2-M5  Supplied Accessories  1. Three (6.56 ft) M5/BNC cables 2. Hexagonal screw (M5)  Operating Temperature Range  -40 to 120 °C ( -40 °F to 248 °F )  Weight  50 g (1.76 oz)  Size/Dimension  See diagram
