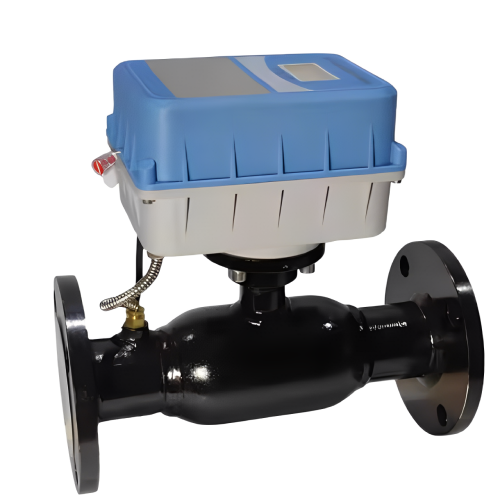

Electric Ball Valve for Smart Automation and Control – GAOTek
$46.86
$78.26
Description Technical Specifications Structure Safety Application General Power Electric Customized Support OEM, ODM, OBM Temperature of Media High temperature, Low temperature, Medium temperature Media Water Type Ball valve Usage Automation of valve Material Carbon steel Valve Core 304 stainless steels Working Medium Water oil steam Working Pressure PN16 PN25 Voltage DC 3.6 V, DC 24 V Battery Capacity 57000 mAh (customizable) Standby Power 50 µA Switching Power 1 W Torque 100 Nm Communication M-BUS, NB-IOT, LORA, 4G, 0 V to 10 V, 4 mAH to 20 mAH Operation Time 2 min (customizable) Drive Mode electric Protection Grade IP67, IP68 Actual Shell Material Nylon upper shell aluminum lower shell Body Material Carbon steel (flange connection) Working Pressure PN16, PN25 Medium Water, hot water, steam Working Temperature -4 °F to 302 °F (-20 °C to 150 °C) Opening 0° to 90° Size ½ in to 8 in (1.27 cm to 20.32 cm), DN15 to DN200 (Customized according to needs)
