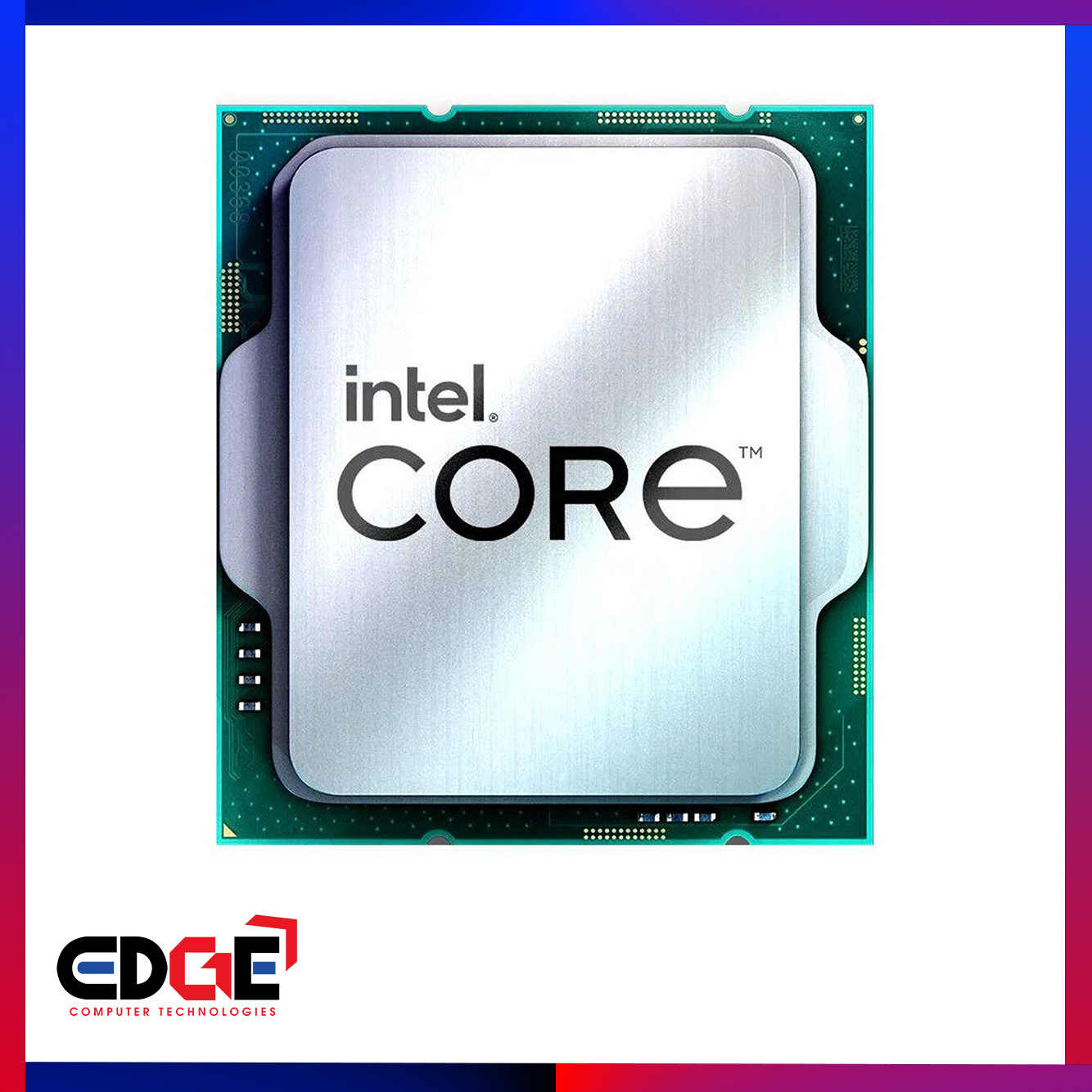

INTEL Core i5-8400 MPK Processor | LGA 1700 | 6 Cores | 6 Threads | Up to 4.0GHz

Description Essentials Product Collection 8th Generation Intel® Core™ i5 Processors Code Name Products formerly Coffee Lake Vertical Segment Desktop Processor Number i5-8400 Lithography 14 nm CPU Specifications Total Cores 6 Total Threads 6 Max Turbo Frequency 4.00 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.00 GHz Processor Base Frequency 2.80 GHz Cache 9 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max # of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s ECC Memory Supported   ‡ No GPU Specifications GPU Name‡ Intel® UHD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.05 GHz Graphics Video Max Memory 64 GB 4K Support Yes |  at 60Hz Max Resolution (HDMI)‡ 4096×2304@24Hz Max Resolution (DP)‡ 4096×2304@60Hz Max Resolution (eDP – Integrated Flat Panel)‡ 4096×2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x3E92 Expansion Options Scalability 1S Only PCI Express Revision 3 PCI Express Configurations ‡ Up to 1×16 |  2×8 |  1×8 2×4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1151 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C (65W) TJUNCTION 100°C Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ No Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel® Secure Key Yes Intel® AES New Instructions Yes Intel® Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ No Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
