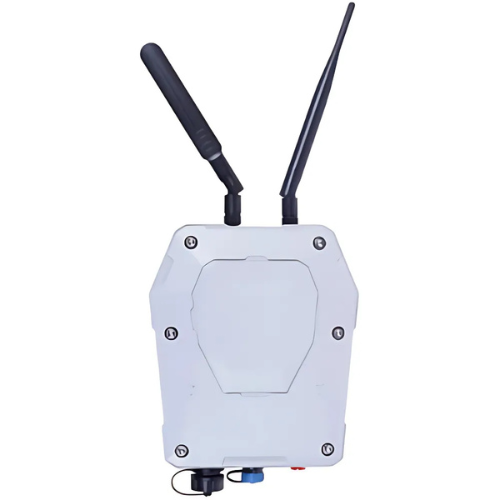

High Performance Gateway for Wireless Communication – GAOTek
$68.15
$132.89
Description Features High-performance Cortex A8 1GHz processor, Linux system Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm. Support multiple ISM bands CN470, EU868, US915 Support multiple methods to access the network 4G, Ethernet. Ultra-wide-distance transmission 10km in line of sight scene, 2 km in urban scene Industrial grade protection IP66 enclosure, temperature -40 to 70, suitable for outdoor applications Easy deployment, and rapid provisioning (see the “how to install” video below) Technical Specifications CPU TI AM3358 Cortex-A8 1GHz System Linux Debian RAM DDR3 512MB Memory 8GB eMMC Channel Plan 902 MHz to 928 MHz LoRa Power Output 25dBm LoRa Sensitivity -139dBm (SF12BW125) Ethernet 100Mbps FE (RJ-45) 4G Band LTE-FDD B1 or B2 or B3 or B4 or B5 or B7 or B8 or B12 or B13 or B18 or B19 or B20 or B25 or B26 or B28, LTE-TDD B38 or B39 or B40 or B41, WCDMA B1 or B2 or B4 or B5 or B6 or B8 or B19 GSM850 MHz or 900 MHz or 1800 MHz or 1900 MHz 4G Features Support non CA Cat 4 FDD and TDD, LTE-FDD Max 150Mbps (DL), Max 50Mbps (UL), LTE-TDD Max 130Mbps (DL), Max 30Mbps (UL) UMTS Features Support 3GPP R8 DC HSDPA, HSPA , HSDPA, HSUPA and WCDMA, DC-HSDPA Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL), WCDMA Max 384Kbps (DL), Max 384Kbps (UL) LoRa Antenna 2.5dBi gain or Vertical polarization or Omni-directional or SMA-J connector 4G Antenna 0 to dBi 4 dBi gain or Linear polarization or Omnidirectional or SMA-J connector LED Indicator Indicating network condition (online or offline) Grounding Reserved 1 screw hole for GND Power Consumption 3.6W Power Supply DC 12V or 2A IP Rating IP66 UV Resistance Anti-aging (from rain or sun exposure): UL746C F1 Enclosure Material PC Operating Humidity 0 %RH to 100 %RH (non-condensing) Installation Method Wall or pole mounting Operating Temperature -40°F to 158°F (-40°C to 70°C) Device Dimensions 10.08 in x 6.30 in x 3.19 in (25.6 cm x 16 cm x 8.1 cm) Device Weight 27.39 oz (777 g)
