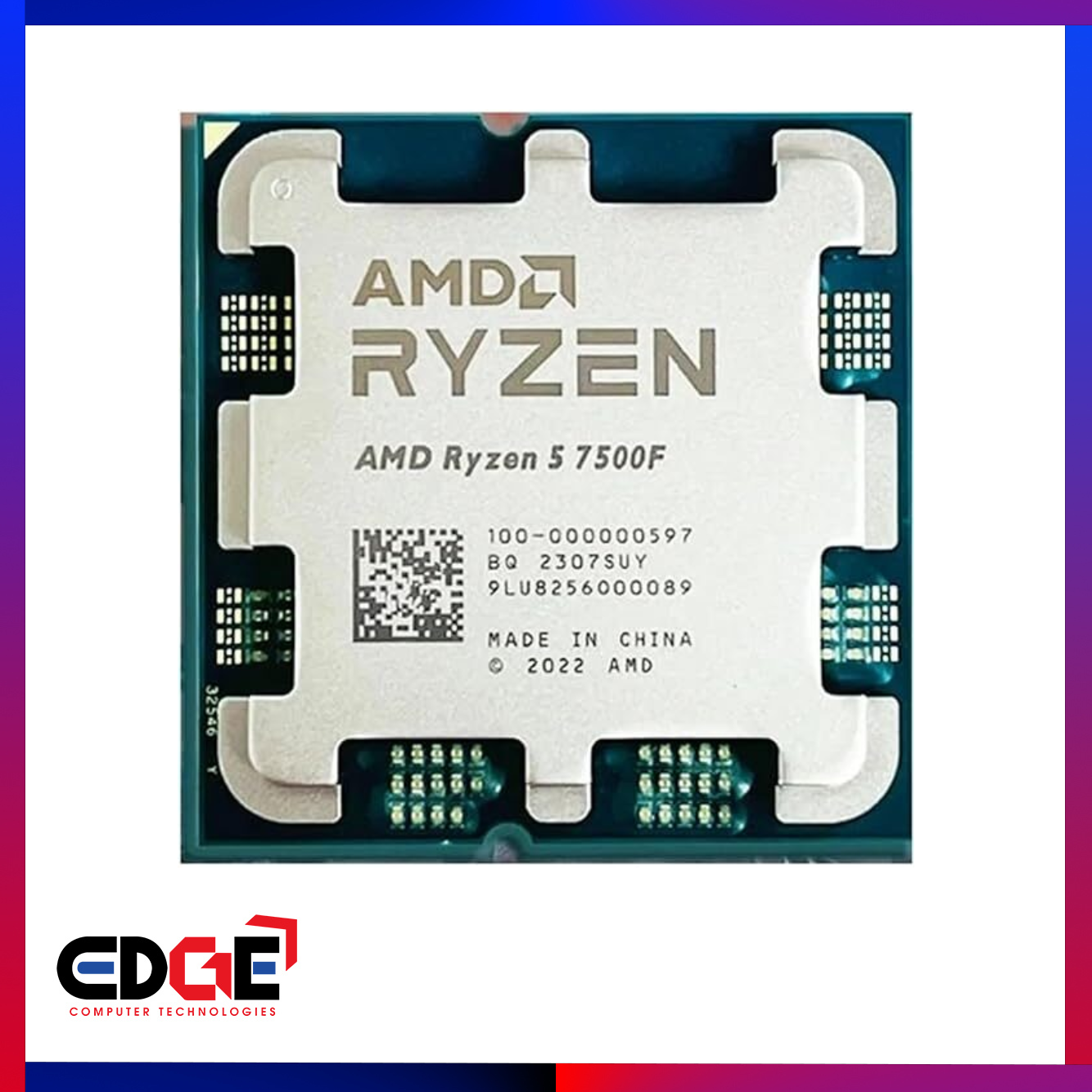

AMD Ryzen 5 7500F MPK Processor | AM5 | 6 Cores | 12 Threads | Up to 5.0GHz

Description GENERAL SPECIFICATIONS Name AMD Ryzen™ 5 7500F Family Ryzen Series Ryzen 7000 Series Form Factor Desktops AMD PRO Technologies No Market Segment Enthusiast Desktop AMD PRO Technologies No Regional Availability Global Architecture Zen 4 # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 5 GHz Base Clock 3.7 GHz L1 Cache 384 KB L2 Cache 6 MB L3 Cache 32 MB Default TDP 65W Processor Technology for CPU Cores TSMC 5nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution AMD Wraith Stealth Max. Operating Temperature (Tjmax) 95°C *OS Support Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit   CONNECTIVITY Native USB 3.2 Gen 2 (10Gbps) 4 Native USB 3.2 Gen 1 (5Gbps) 0 Native USB 2.0 (480Mbps) 1 Native SATA Ports 0 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 , 24 Additional Usable PCIe Lanes from Motherboard X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 A620 4x Gen3 NVMe Support Boot , RAID0 , RAID1 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128 GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support)   GRAPHICS CAPABILITIES Graphics Model Discrete Graphics Card Required   KEY FEATURES Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
