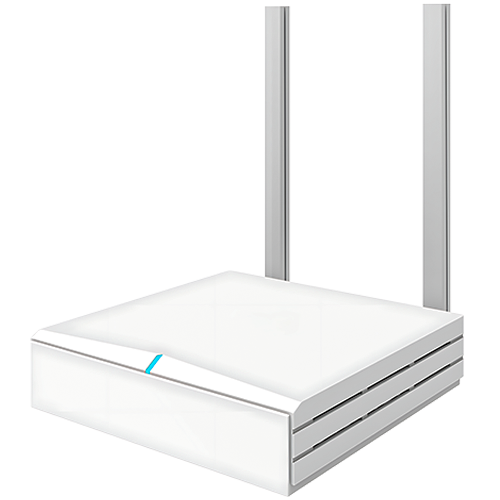

Durable Indoor Lorawan Gateway with Secure Connectivity – GAOTek
$40.16
$54.62
Description Technical Specifications Use Gateway Mounting Type Bracket Installation Type Gateway Description Gateway Features Gateway Manufacturing Date Code GTD342JJHN Theory LoRa Output LoRaWAN Coverage Radius Urban 5Km, Suburb 15km Receiver Sensitivity -140 dbm@SF12/BW123kHz Production Grade IP66 Exterior Design Patent Design, Personality Customization MOQ 1 Piece Working Humidity 0 to 90%RH Sensitivity -137dBm @SF12/BW 125KHz Transmit Power 17 dBm (Typical) Bandwidth 125KHz/250KHz/500MHz Configurable Uplink Ethernet/WiFi/4G Communication Distance Suburban 5Km, Urban 3Km IP Grade IP30 Color Off White Material PC ABS Input Voltage DC12V (11.0 VDC to 14.0 VDC) Installation Desktop/Wall Mount/Ceiling Mount Operating Humidity 0 % to 90% RH Heat Dissipation Radiator Grille Processor MIPS 550MHz RAM 128MB RAM Flash 16MB Wifi QCA9513 System Encryption AES128 OS Open WRT Operating Temperature 32°F to 140°F (0°C to 60°C) Structure 7.01 in x 7.01 in x 3.94 in (17.8 cm x 17.8 cm x 10 cm) Size 5.59 in x 5.59 in x 1.38 in (14.2 cm x 14.2 cm x 3.5 cm)
