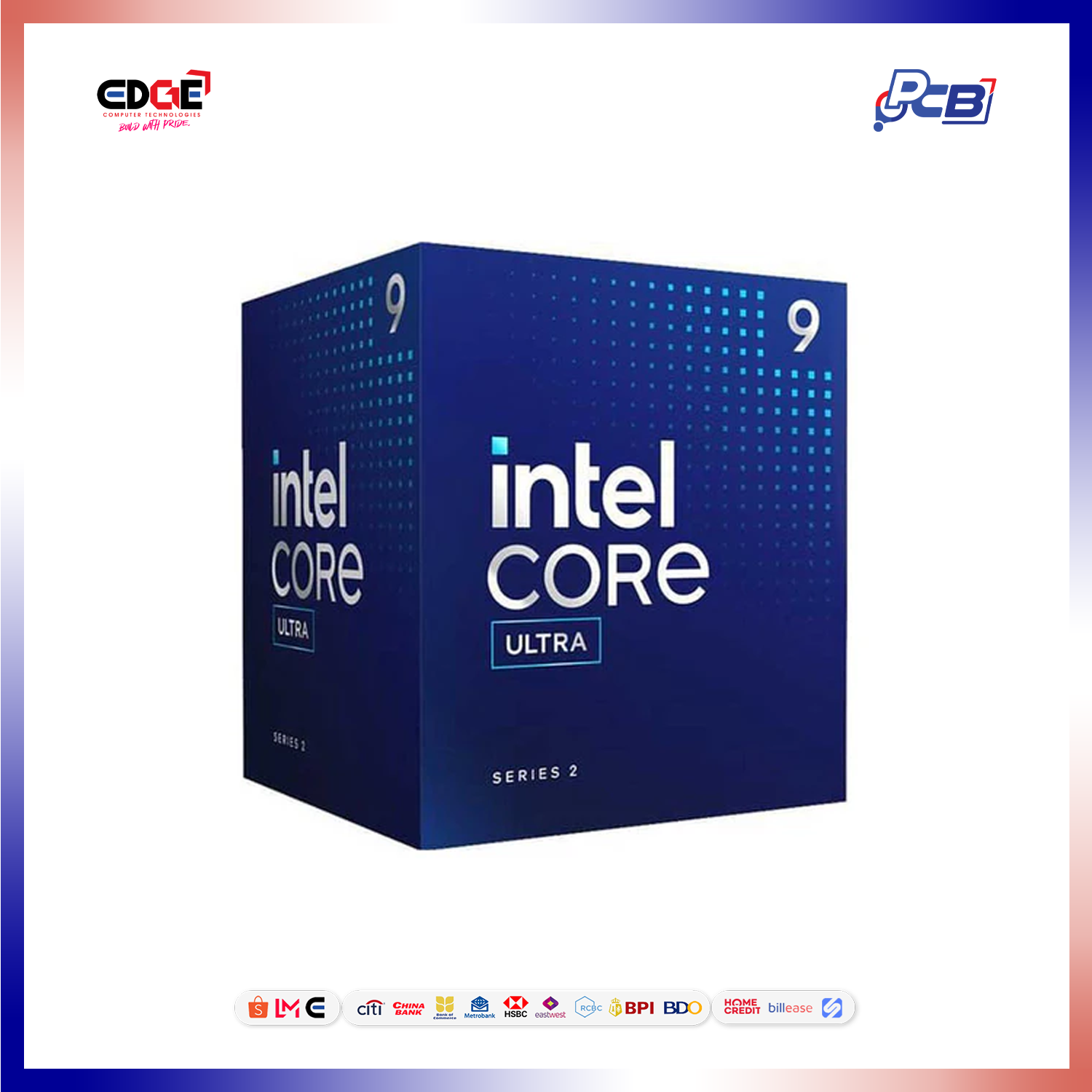

INTEL CORE ULTRA 9 285

Description   CPU Specifications Total Cores 24 # of Performance-cores 8 # of Efficient-cores 16 Total Threads 24 Max Turbo Frequency 5.6 GHz Intel® Thermal Velocity Boost Frequency 5.6 GHz Intel® Turbo Boost Max Technology 3.0 Frequency 5.5 GHz Performance-core Max Turbo Frequency 5.4 GHz Efficient-core Max Turbo Frequency 4.6 GHz Performance-core Base Frequency 2.5 GHz Efficient-core Base Frequency 1.9 GHz Cache 36 MB Intel® Smart Cache Total L2 Cache 40 MB Processor Base Power 65 W Maximum Turbo Power 182 W Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes AI Software Frameworks Supported by CPU OpenVINO™ |  WindowsML |  DirectML |  ONNX RT |  WebNN CPU Lithography TSMC N3B Supplemental Information Marketing Status Launched Launch Date Q1’25 Embedded Options Available Yes Use Conditions PC/Client/Tablet |  Workstation Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 6400 MT/s Max # of Memory Channels 2 ECC Memory Supported Yes GPU Specifications GPU Name‡ Intel® Graphics Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 2 GHz GPU Peak TOPS (Int8) 8 Graphics Output DP2.1 UHBR20 |  HDM2.1 FRL 12GHz |  eDP1.4b Xe-cores 4 Max Resolution (HDMI) 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) Max Resolution (DP) 8K @ 60Hz Max Resolution (eDP – Integrated Flat Panel) 4K @ 60Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Intel® Quick Sync Video Yes # of Displays Supported 4 Device ID 0x7D67 Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes NPU Specifications NPU Name‡ Intel® AI Boost NPU Peak TOPS (Int8) 13 Sparsity Support Yes Windows Studio Effects Support Yes AI Software Frameworks Supported by NPU OpenVINO™ |  WindowsML |  DirectML |  ONNX RT |  WebNN Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Intel® Thunderbolt™ 4 Yes Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1×16 2×4 |  2×8 2×4 | 1×8 4×4 Max # of PCI Express Lanes 24 Package Specifications Sockets Supported FCLGA1851 Thermal Solution Specification PCG 2022C Max Operating Temperature 105 °C Advanced Technologies Intel® Volume Management Device (VMD) Yes Intel® Gaussian & Neural Accelerator 3.5 Intel® Thread Director Yes Intel® Speed Shift Technology Yes Intel® Thermal Velocity Boost Yes Intel® Turbo Boost Max Technology 3.0 Yes Intel® Turbo Boost Technology 2 Intel® 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Security & Reliability Intel vPro® Eligibility Intel vPro® Enterprise Intel® Threat Detection Technology (TDT) Yes Intel® Active Management Technology (AMT) Yes Intel® Standard Manageability (ISM) Yes Intel® Remote Platform Erase (RPE) Yes Intel® One-Click Recovery Yes Intel® Control-Flow Enforcement Technology Yes Intel® Total Memory Encryption – Multi Key Yes Intel® AES New Instructions Yes Secure Key Yes Intel® Trusted Execution Technology Yes Execute Disable Bit Yes Intel® OS Guard Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology with Redirect Protection (VT-rp) Yes Intel® Virtualization Technology (VT-x) Yes Intel® Virtualization Technology for Directed I/O (VT-d) Yes Intel® VT-x with Extended Page Tables (EPT) Yes
