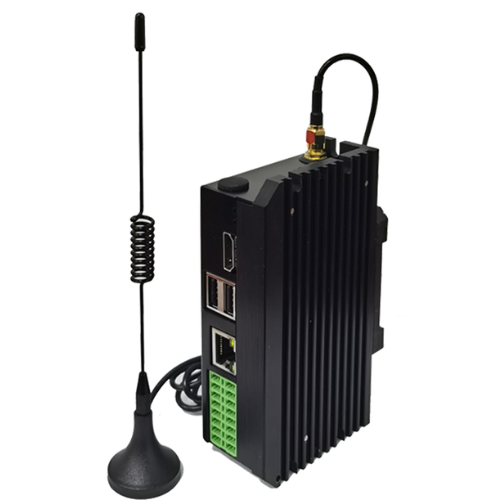

Dual Band LoRaWAN & LTE Gateway with Broadcom CPU – GAOTek
$65.13
$106.16
Description Features Long-range connectivity Dual-band Wi-Fi 4G LTE and NB-IoT High-performance CPU Multiple interface options Customizable memory Technical Specifications CPU Broadcom BCM2711, Quad-core A72 (ARM v8) @ 1.5 GHz Memory 2GB LPDDR4 (1GB or 4GB or 8GB optional) Flash Storage 8GB eMMC (16GB or 32GB optional) Ethernet 1 x Gigabit Ethernet (Configurable as WAN or LAN) Cellular 4G LTE or 3G or 2G or NB-IoT / CAT-M1 Wi-Fi Dual-band 2.4GHz or 5GHz, IEEE 802.11b or g or n Antenna 4G: SMA x 1 (internal), Wi-Fi or Bluetooth: SMA x 1 (internal) SIM Slot 1.8 V or 3 V, Nano SIM card drawer-type Serial Ports RS-232 x 1, RS-485 x 1, with 15KV ESD protection I/O Ports 2 x Digital Input (DI), 2 x Digital or Pulse Output (DO) USB Ports USB 2.0 x 2, USB-C x 1 (Power supply & Console) HDMI HDMI 2.0 x 1, supporting up to 4K@60fps video output Protection IP30 rated Ambient Humidity 5 to 95% (non-condensing) Power Consumption 10 W Power Supply 9 to 36 V DC or 1A Operating Temperature -13°F to 158°F (-25 °C to 70 °C Dimensions 4.88 in x 2.99 in x 1.41 in (12.4 cm x 7.6 cm x 3.5 cm)
