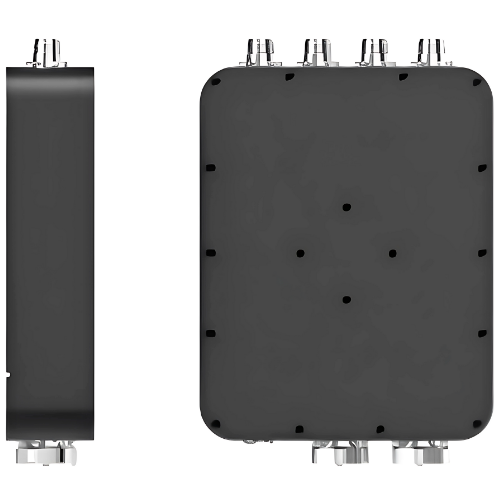

Custom Outdoor LoRaWAN Gateway for Electronics – GAOTek

Description Technical Specifications Main Frequency Size 528 MHz Internal Storage 512 MB Flash Memory 8 GB Built-in Hardware watchdog, a timer Ethernet 10 / 100M adaptive dual-network port PDA BLE4.2 Communication Mode 4G Cat.1 Wireless System LoRa full duplex LoRa Service Frequency 470 MHz to 510 MHz 4G Operating Frequency LTE-FDD B1/ 3 / 5 / 8 LTE-TDD B34 / 38 / 39 / 40 / 41 LoRa Receive Channel 8-way 125 KHz SF adaptive (5 to 12) LoRa Transmitting Power 22 dBm LoRa Reception Sensitivity -141 dBm (SF12 & BW125KHz) 4G Communication Protocol TCP/UDP/MQTT (Software Configurable) LoRa Communicating Protocol Rapper protocol or standard LoRaWAN Data Format Transmission / TLV / JSON 4G Data Rate LTE-FDD (Mbps) 10 (Downside) / 5 (Up) LTE-TDD (Mbps) 8.9 (Downside) / 3 (Up) LoRa Data Rate 300 bps to 62.5 kbps Power Supply Mode External power supply, waterproof connector or POE Service Voltage DC 9 V to 24 V Power of the Machine 3 W Levels of Protection IP67 Way to Install Hold the pole installation Product Type Outdoor LoRaWAN Gateway Work Environment -40 °F to 158 °F (-40 °C to 70 °C), 95 % RH (no condensation) Product Size 9.25 in x 8.39 in x 2.83 in(23.5 cm x 21.3 cm x 7.2 cm)
