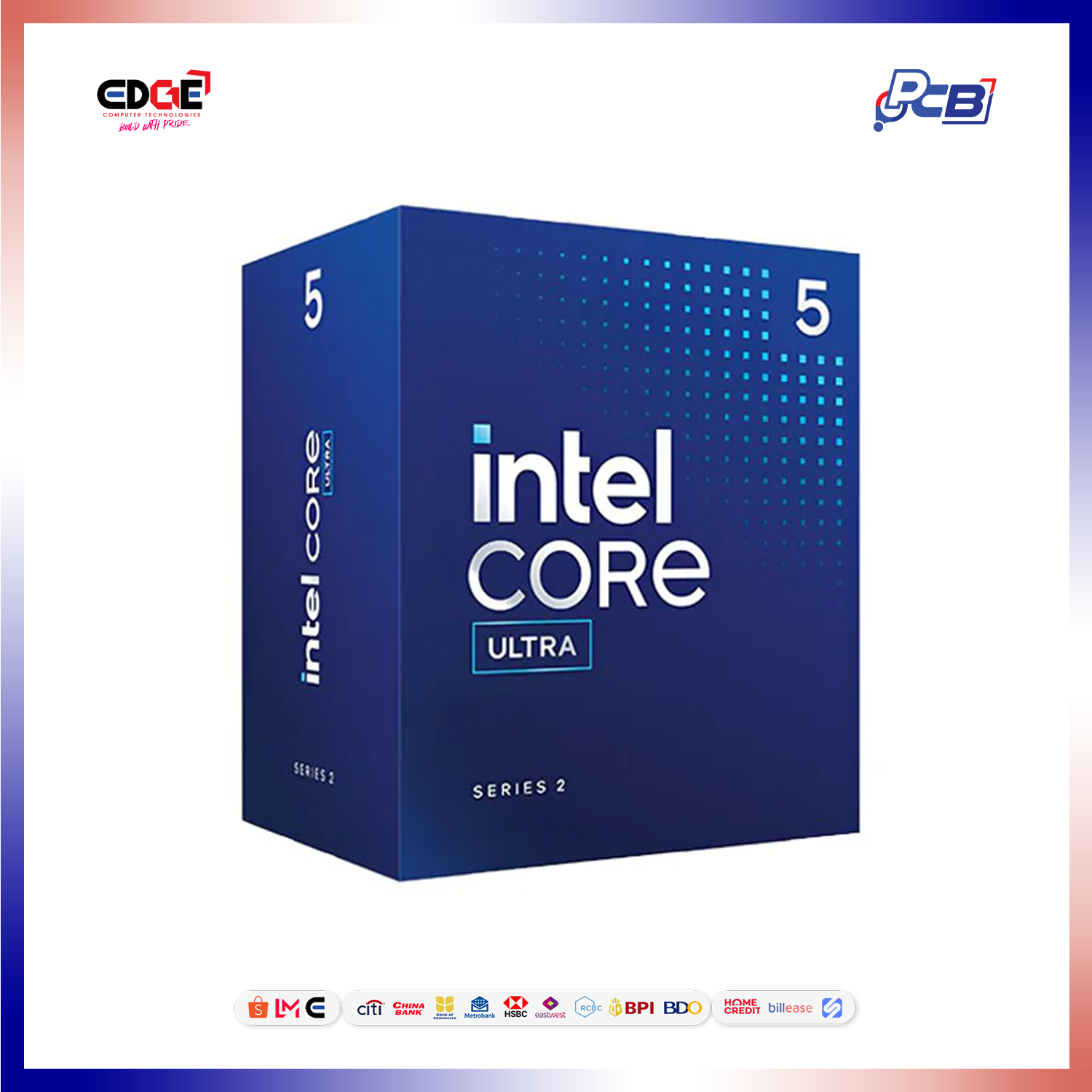

INTEL CORE ULTRA 5 225

Description SPECIFICATION Essentials Product Collection Intel® Core™ Ultra Processors Vertical Segment Desktop Processor Number 225 Overall Peak TOPS (Int8) 23 CPU Specifications Total Cores 10 # of Performance-cores 6 # of Efficient-cores 4 Total Threads 10 Max Turbo Frequency 4.9 GHz Performance-core Max Turbo Frequency 4.9 GHz Efficient-core Max Turbo Frequency 4.4 GHz Performance-core Base Frequency 3.3 GHz Efficient-core Base Frequency 2.7 GHz Cache 20 MB Intel® Smart Cache Total L2 Cache 22 MB Processor Base Power 65 W Maximum Turbo Power 121 W Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN CPU Lithography TSMC N3B Memory Specifications Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 6400 MT/s Max # of Memory Channels 2 GPU Specifications GPU Name‡  Intel® Graphics Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.8 GHz GPU Peak TOPS (Int8) 4 Graphics Output DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores 2 Max Resolution (HDMI)‡  4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) Max Resolution (DP)‡ 8K @ 60Hz Max Resolution (eDP – Integrated Flat Panel)‡ 4K @ 60Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Intel® Quick Sync Video Yes # of Displays Supported ‡ 4 Device ID 0x7D67 Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes NPU Specifications NPU Name‡ Intel® AI Boost NPU Peak TOPS (Int8) 13 Sparsity Support Yes Windows Studio Effects Support Yes AI Software Frameworks Supported by NPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Intel® Thunderbolt™ 4 Yes Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡  Up to 1×16 2×4, 2×8 2×4, 1×8 4×4 Max # of PCI Express Lanes 24 Package Specifications Sockets Supported FCLGA1851 Thermal Solution Specification PCG 2022C Max Operating Temperature 105 °C Advanced Technologies Intel® Volume Management Device (VMD) Yes Intel® Gaussian & Neural Accelerator 3.5 Intel® Thread Director Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Technology ‡  2 Intel® 64 ‡  Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Security & Reliability Intel® Standard Manageability (ISM) ‡  Yes Intel® Control-Flow Enforcement Technology Yes Intel® AES New Instructions Yes Secure Key Yes Intel® Trusted Execution Technology ‡  Yes Execute Disable Bit ‡  Yes Intel® OS Guard Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡  Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡  Yes Intel® VT-x with Extended Page Tables (EPT) ‡  Yes
