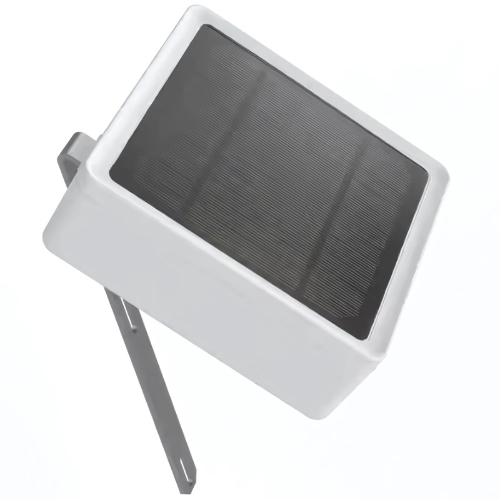

BLE Module With SX1276, LoRaWAN 1.0.2 B Protocol, Bluetooth 5.0, IP66, 20 dBm – GAOTek

Description Technical Specifications Chipset SX 1276 Type BLE Module Function IOT System Bluetooth Protocol Bluetooth 5.0 LoRaWAN Protocol LoRaWAN 1.0.2 B LoRaWAN Band US 915, AU 915, EU 868, EU 433, AS 920 923, AS 923 925, RU 864, ID 920, KR 920, IN 865, KZ 865, CLAA, CN 470, CN 470 Ali LoRa Maximum RF Power 20 dBm LoRa Sensitivity -139 dBm at SF 12, BW 125 kHz, 434 MHz or 470 MHz – 137 dBm at SF12, BW 125kHz, 868 MHz or 915 MHz Access Quantity Greater than 500 in one LoRa gateway Data Rate (bps) 300 to 30 K Beacon Access Quantity 100 beacon messages can be received within 1 s, Maximum of 15 beacon messages at one single LoRa communication Peak Current Max 140 mA in transmit mode Ingress Protection IP 66 Encryption AES 128, X 509 Standby Time 2552 days, Bluetooth receiving windows 3 seconds, Positioning interval 5 minutes (300 s), Average data size around 12 beacons (5.5 bytes per beacon, 800 ms beacon advertise interval), Use commands to change the period of position report to save power Battery 5,300 mAh Battery Life Adjustable Position Report Interval 5 s x n (1 to 65536), Heartbeat Report Interval 30 s x n (1 to 65536), Switch Mechanical Customized data filter and data report, Support FOTA over Bluetooth Support, Max Beacons Supported 105, maximum of 15 beacon messages at one single LoRa communication at SF9 Operating Temperature -40 °F to 185 °F (- 40 ℃ to 85 ℃) Dimension 6.3 in x 6.3 in x 2.17 in (16 cm x 16 cm x 5.5 cm) Weight 5.29 oz (150 g) Positioning Precision 9.84 ft (3 meters)
