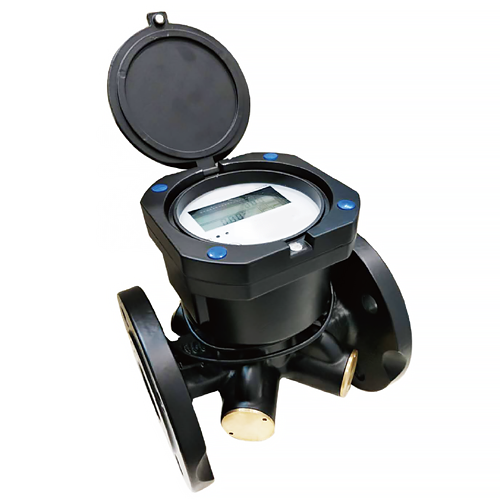

Black Cast Steel Water Meter with IP68 Protection – GAOTek
$53.83
$101.74
Description Technical Specifications Communication Mbus, RS485, LoRa, NB-IoT, Sigfox Material Cast Steel Color Black Standard ISO4064 Class B Dynamic Range R125-R500 Pipe Material Cast Iron Metrological Class Class 2 Ratio (Q3/Q1) R125, R200, R250, R500 Max Admissible 1.6 MPa Pressure Loss ΔP < 40 kPa Flanged Standard ANSI, GB (DIN) Pressure Stage PN16 Installation Position U10 / D5 Protection Class IP65 / IP68 Battery Lifespan 3.6 VDC lithium battery, 6 / 10 / 16 years Data Storage 24/120 logs (daily, weekly, or monthly) Electromagnetic Class E1 Mechanical Class M1 Environmental Condition B Interface & Communication IrDA, LoRaWAN, Sigfox, NB-IoT, W-MBus, RS485, MBus, Pulse Output Assembly Orientation Horizontal, Vertical Display & Indication Units: m³ or Gallon (optional); 9-digit LCD display Temperature Medium: 41°F to 131°F (0.1°C to 30°C or 50°C) (T30/T50); Ambient: 5°C to 55°C (); Storage: -4°F to 140°F (-20°C to 60°C) Size DN50 to DN900 (1.97 in to 35.43 in (5 cm to 90 cm)
