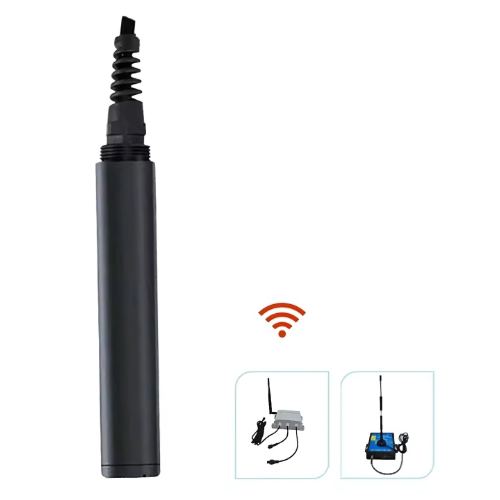

Aquaculture Water Turbidity Sensor with LoRaWAN – GAOTek

Description Technical Specifications Use Aquaculture Mounting Type Put In Water, Input Features Turbidity Detection Sensor, High Precise, Shading Flange Theory Infrared Light Output RS485 Output Voltage Supply 5 V To 24 V DC Measuring Range 0.1 NTU To 1000 NTU Resolution 0.1 NTU Accuracy ±3% FS Voltage Max 24 V DC Voltage Rated 5 V To 24 V DC Voltage Input 5 V To 24 V DC Application Aquaculture, Water Treatment, Sewage Treatment, River Water Quality Monitoring Wireless Module Or Transmission Lora Or Lorawan (EU868 Mhz, 915 Mhz), GPRS, NB-Iot, 4G, Wifi Mounting Brackets 4.92 Ft (1.5 M), 6.56 Ft (2 M) The Other Height Can Be Customize Measuring Tank Can Be Customized Free Server The Free Cloud Server Can Be Supplied If You Use Our Wireless Modules Free Software See The Real Time Data Download The History Data In Excel Type Cloud Server And Software Support Output Function Water Turbidity Value Measuring Principle 90-Degree Light Scattering Method Digital Output RS485, MODBUS Communication Protocol Analog Output 0 V To 5 V, 0 V To 10 V, 4 Ma O 20 Ma Housing Material POM Power Supply RS485 4 Ma To 20 Ma Specification Customizable Standard Cable Length 6.56 Ft (2 M) The Farthest Lead Length RS485 3.28 Ft (1 Km) Protection Level IP68 Humidity Range 0% To 100% Operating Temperature 32 °F To 140 °F (0 °C To 60 °C)
