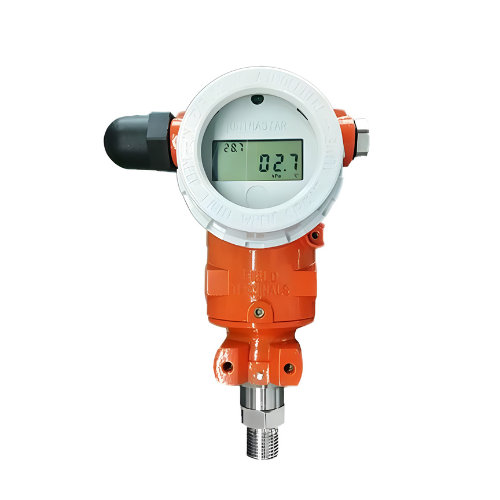

Advanced LoRaWAN Wireless Pressure Temperature Sensor -GAOTek
$41.38
$75.31
Description Technical Specifications Working Voltage 3.3 V to 3.6 VDC Battery Life ≥ 2 years Maximum Working Current < 300 mA Sampling Interval 10 min Pressure Range 0 to 15 MPa (0 to 2175 psi) Pressure Accuracy ±0.5% FS Temperature Accuracy ±1.5 °F (±1.5 °C) Pressure Connection G1/2 Housing Material Aluminum Alloy Ingress Protection IP65 Ambient Temperature Range -4 °F to 185 °F (-20 °C to 85 °C) Storage Temperature Range -40 °F to 185 °F (-40 °C to 85 °C) Housing Dimensions 6.1 in x 5.1 in x 7.9 in (15.5 cm x 12.9 cm x 20 cm) Antenna Type Rod Antenna Weight 1.1 lb (0.5 kg) Temperature Range -22 °F to 302 °F (-30 °C to 150 °C) Antenna Rod antenna Working Voltage 3.3 to 3.6VDC Battery Life ≥ 2 years (3.6V lithium battery, ER26500 – 9AH, See Note 1) Sampling Interval 10 minutes (Configurable) Pressure Range 0 to 15 MPa (Optional) Pressure Accuracy ±0.5%FS (Customizable) Pressure Connection G1/2 (Customizable) Explosion Proof ExdIIBT5 Gb (Evidence collection as required) Operating Humidity 10% to 90% IP Rating IP22 Cooling Heat dissipation silicone/aluminum Power Consumption 500mA@5V
