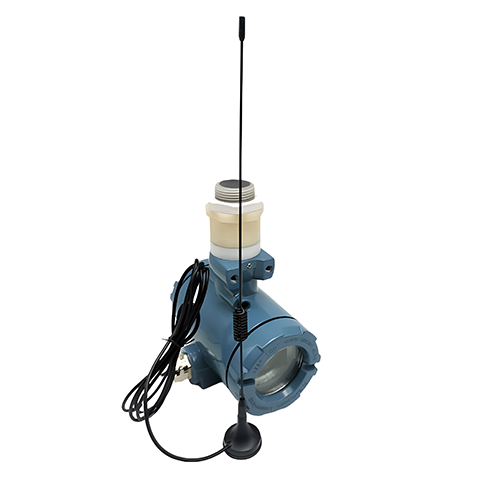

Description Features Wireless transmit power less than 23 dBm Supports vertical or axial installation Customizable collection frequency and time interval Powered by two DC 3.6V disposable lithium batteries Wide temperature LCD display (-22°F to 176°F) Wireless transmission of alarm status to server Configurable server address and port Technical Specifications Measured Variable Liquid level, material level Blind Zone 11.81 in (30 cm) Maximum Measuring Range 13.12 ft (4 m) Comprehensive Accuracy ±0.15% FS; ±0.27 °F (±0.15°C) Vibration Influence <± 0.05%/g, 500 Hz in all directions Signal Output LoRa WAN or 4G Cat1 or NB-IoT Protection Level IP65 compliant with EN 60529 Electromagnetic Compatibility EN 61326/A2 Annex A (2001) Display SFTN LCD, white backlight, 5 digits Connector 1 NPT, stainless steel, 20 mm Measured Variable Liquid level, material level Blind Zone Default 30cm (Min. 15cm) Maximum Measuring Range Default: 20-4000mm (Max. 15m) Vibration Influence < ±0.05%/g, 500Hz in all directions (IEC 68-2-64) Signal Output Lora WAN/Lora private/4G cat1/NB-IOT Display SFTN LCD, white backlight, 5 digits display Limit Value Free setting Parameter Settings Use 3 buttons Connector 1NPT, stainless steel, length 20mm Electrical Connections Waterproof connector, air hole cable (EN 175301-803A) Measurement Period ≤ 100ms Comprehensive Accuracy ±0.15%FS / 0.15°C Temperature Compensation -4 °F to 158 °F (-20 °C to 70 °C) Ambient Temperature -13 °F to 185 °F (-25 °C to 85 °C) Weight 2.98 lb (1.35 kg)
