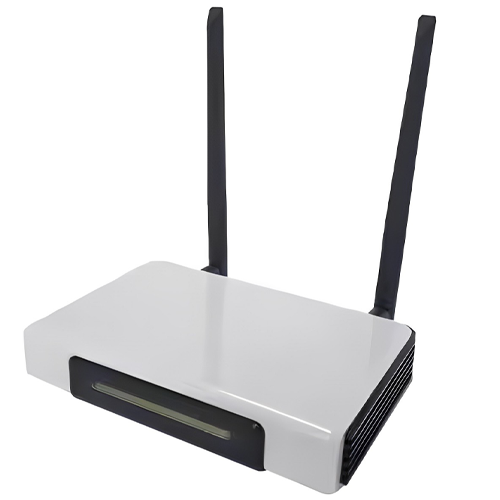

Advanced Indoor LoRaWAN Building Automation Gateway – GAOTek
$56.07
$83.54
Description Overview GAOTek advanced indoor lorawan building automation gateway an easy-to-install indoor gateway using the LoRaWAN protocol. It features transceiver and an MTK platform, connecting to LoRaWAN Cloud via Ethernet or Wi-Fi. It supports AP, STA, and PPPoE router modes, with a single RJ45 port for auto WAN/LAN switching. Ideal for smart homes, hotels, buildings, and indoor smart parking. Features Max output power: P27dBm High sensitivity: -141dBm @ 300bps Ideal for smart buildings and indoor applications Building automation compatibility Half duplex mode for LoRaWAN communication LoRaWAN uplink: 8 multi-SF channels (SF7-SF12, 125kHz), 1 high-speed SF channel, 1 GFSK channel LoRaWAN downlink: Configurable 125kHz/250kHz/500kHz or GFSK Data rate: 292bps to 50kbps Supports LoRaWAN Class A/C Wi-Fi 2.4GHz, compatible with WLAN 11b/g/n AP, Station, and PPPoE network modes Includes 1 LoRaWAN antenna (0dBi gain) and 1 Wi-Fi antenna (5dBi gain) 10/100M Ethernet with auto LAN/WAN switching via RJ45 Configurable via Wi-Fi or LAN LED status indicators for power, Wi-Fi, LoRaWAN, and USB DC 12V input, designed for indoor use Operating frequency bands (optional on order): 434MHz, 470MHz/510MHz, 780MHz, 868MHz Technical Specifications Application Smart Building, Indoor Use, Building Automation Type Multi-jet meters, Electromagnetic Meters Customized Support ODM Kernel ARM Cortex-A53 Communication Mode Half Duplex for LoRaWAN LoRaWAN Uplink 8 Multi-SF Channels (SF7-SF12, 125kHz), 1 High-speed SF Channel, 1 GFSK Channel LoRaWAN Downlink 1 Normal Channel (125kHz/250kHz/500kHz or GFSK) Data Rate 292bps to 50kbps LoRaWAN Classes Class A/C Wi-Fi 2.4GHz, WLAN 11b/g/n Compatible Network Modes AP, Station, PPPoE Antenna 1 LoRaWAN (0dBi Gain), 1 Wi-Fi (5dBi Gain) Ethernet 32.81 ft/328.08 ft (10 M/100 M), auto LAN/WAN Switch via RJ45 Configuration Via Wi-Fi or LAN Status Indicators LED for Power, Wi-Fi, LoRaWAN, USB Input Power DC 12 V Operating Frequency Bands 434 MHz, 470 MHz/510 MHz, 780 MHz, 868 MHz (Optional) Dominant Frequency 1.2 GHz Material Nylon Color White Sensitivity -141dBm @ 300bps Max Output Power P27dBm Use Case Indoor Use Weight 74.08 oz (2100 g)
