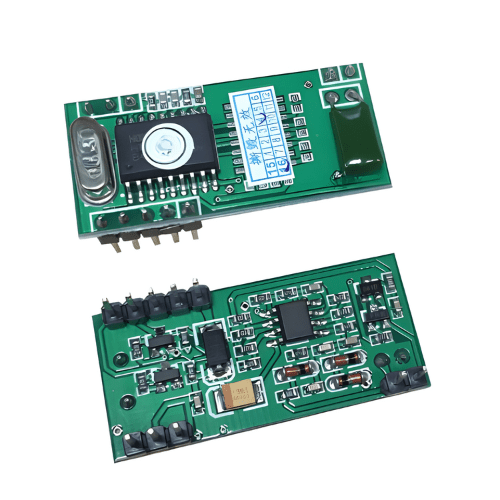

125 KHz RFID Module with USB/Serial Interface, IP65 & Read-Only Function – GAOTek

Description Overview GAOTek  125 khz  RFID Reader Access Control Module is a 125 KHz read-only module for EM 4100 or TK 4100 125 KHz cards, which can read and output CSN card number. It has options of Wiegand26, RS232 and TTL output format.   Features 125 KHz Operating Frequency Available to be embedded into individual items Read CSN card number only Different output formats   Technical Specifications Frequency 125 KHz Type RFID Module Protocol ISO 14443A or B, ISO 15693 and ISO 18092 Card Type CPU, HID, EM, Tk 4100 Em 4305 Interface USB, Serial Port, RS 232 or RS 485 or Wg 26 or 34 Reading Distance > 0.03 ft (8 cm) Application Hospital Library Company Bank Store Protection Level IP 65 Reading Range 0 ft to 0.03 ft (0 cm to 8 cm) Supporting Card EM 4100 TK 4200 EM 4200 Card Antenna External, Variety of Optional Specifications Connection Metal Pin Connection Read Or Write Read Uid Only Reading Distance > 0.16 ft (5 cm) Power Supply DC 5 V or 3.3 V Color Standard Application Implanting to devices such handheld terminal Operating Temperature -14 °F to 158 °F (-10 °C to  70 °C) Module Size 1.54 in X 0.75 in X 0.35 in (39 mm X 19mm X 9 mm)
