125 KHz RFID Module with USB/Serial Interface, IP65 & 8 cm Range – GAOTek
$64.19
$82.81

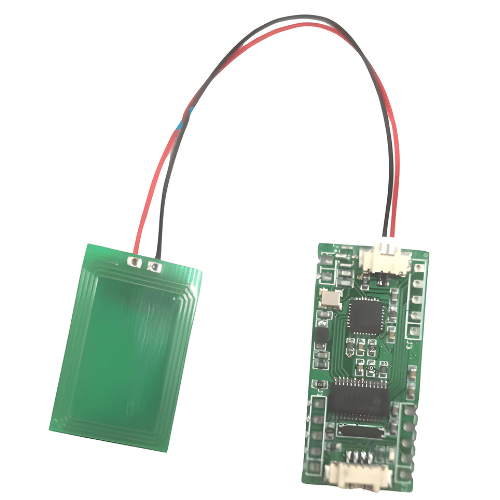

Description Overview GAOTek high performance RFID reader modules is a 125 KHz read-only module for EM4100 or TK4100 125KHz cards, which can read and output CSN card number. It has option of Wiegand26, RS232 and TTL output format. Features 125 KHz Operating Frequency Available to be embedded into individual items Read CSN card number only Different output formats Technical Specifications Frequency 125 KHz Protocol ISO14443 A or B, ISO15693 and ISO18092 Type RFID Module Card Type CPU, HID, EM, Tk4100 Em4305 Interface USB, Serial Port, RS232, RS485 Wg 26 or 34 Distance >8 cm Support Chips Em4200, Tk4100, T5577, Em4305, NFC, UL Protection Level IP65 Software Supply Sdk and Demo for Free Sample Free Reading Range 0-8 cm Supporting Card Em4200 or Tk4100 Power Supply 5 V or 3.3 V Antenna External, Variety of Optional Specifications Connection Metal Pin Connection Read or Write Read Uid Only Connector LC Simplex Application Table PC, Lift controlPOS terminalAccess controlAttendance applicationRecreational MachineBarrier gate/rapid-Open gateAdvertising tablet PCMedical Electronic EquipmentIdentification card scannerSmart game EquipmentHand-held intelligent terminalPOS consumption endpoint Operating Temperature 14 °F to 158 °F (-10 ℃ to 70 ℃) Size 1.5 in X 0.7 in X 0.3 in (39 mm X 19 mm X 9 mm)
