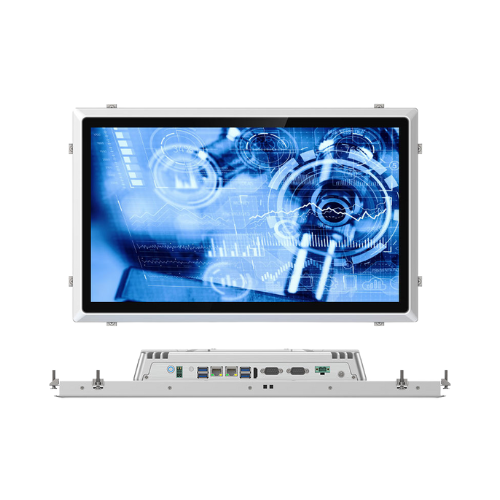

12.1 Inch Industrial Panel PC with Intel CPU, Touch Screen Dual LAN – GAOTek

Description Technical Specifications Product Status Stock Type Panel PC Chassis Color Gray (color can be freely customized) Chassis Material Aluminum alloy integrated die-casting shell Processor Options On-board Intel Celeron J6412 / N5095 / i7-6500U / i5-7200U / i5-1235U / i5-1335U Chipset Intel Embedded SOC (6th to 13th Gen options) Memory 1 × DDR4 SODIMM slot, up to 32 GB BIOS AMI EFI BIOS Display Chip Integrated Intel UHD Graphics Display Interface 1 × HD, 1 × LVDS (supports synchronous/asynchronous dual display) Storage 1 × M.2 2280 slot (SATA protocol), 1 × 2.5″ hard disk bay Expansion Slot 1 × Mini PCIe (optional support for Wi-Fi / Bluetooth / 3G / 4G with SIM card holder) I/O Ports 1 × HD interface, 2 × serial ports (optional RS232/485, optional 6 serial ports), 1 × switch button, 1 × 2-pin Phoenix power terminal, 1 × 2-in-1 audio, 4 × USB 3.0, 2 × Intel Gigabit LAN, 1 × 4-pin remote switch Other Functions Secure encryption, power-on, timed boot, network wake-up, PXE boot, watchdog (0–255 levels) Expandable Functionality Standard: 2 LAN ports, 2 serial ports, 4 USB 3.0; GPIO optional Screen Size 12.1 in TFT-LCD Screen Brightness 350 cd/m² Screen Ratio 4:3 (square) Resolution 1024 × 768 Touch Screen Industrial-grade multi-point capacitive, touch life > 50 million times Audio 28 Ω, 2 W horn Power Supply DC 9–36 V wide voltage input, supports reverse polarity protection Installation Method Embedded / Wall Mounted / Desktop Stand Working Humidity 5% – 95% non-condensing Additional Working Humidity 10% – 95% @ 104 °F (40 °C) without condensation Operating Temperature 14 °F to 122 °F (–10 °C to 50 °C, mechanical HDD) / –4 °F to 140 °F (–20 °C to 60 °C, SSD, with surface airflow) Storage Temperature –40 °F to 176 °F (–40 °C to 80 °C) Product Dimensions 12.23 in × 9.79 in × 2.30 in (310.6 mm × 248.6 mm × 58.5 mm) Flush Mounting Dimensions 11.77 in × 9.33 in (299 mm × 237 mm) Weight 5.73 lb (2.6 kg)
