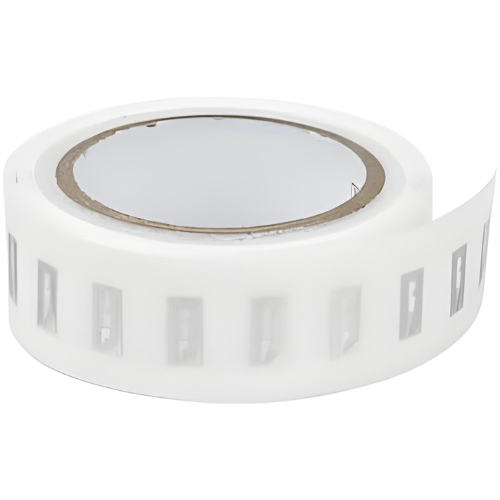

10mm Mini Rewritable RFID NFC Sticker Roll, 215/213 Chips – GAOTek
$65.04
$81.3
Description Overview GAOTek Shielded sticker; can be applied on RF-interfering surfaces such as cellphone batteries Adhesive backing NFC Chip Specifications: NFC Chip Type: NTAG213 Full compliance to the NFC Forum Tag 2 Type technical specification 168 bytes of total memory, divided in 42 pages (4 bytes each) 144 bytes of user R/W memory area, divided in 36 pages (4 bytes each) Rewrite Endurance: 10,000 cycles 16-bit counter Lockable: yes (can be made read only) Tested Read Range:0 – 100 mm depending on the power provided by the reader Operating Frequency: 13.56 MHz Size: dia 3cm Capacity:168 bytes EEPROM (144 bytes available) Material: PVC / adhesive sticker Environmental Specification: Shelf Life 5 Years Recommended: -25 ºC to 50 ºC Storage Condition: 20% RH to 90% RH Operating Temp: -40 ºC to 65 ºC Operating Range < 2cm (depends on device) Read/write Times:100000 times Compatible with NFC enabled smartphones Works with the new Nexus 4 phone and Nexus 10 Tablet Security & Anti-collision: Anti-collision function according to ISO/IEC 14443 allows to operate more than one sticker in the field simultaneously Anti-cloning support by unique 7-byte serial number for each device 32-bit user definable One-Time Programmable (OTP) area Field programmable read-only locking function per page for first 512 bits Read-only locking per block for rest of memory. Features Wet inlay, dry inlay, label (paper label, PVC label.) Silk-screen printing with logo, color Printing of serial number or barcode Adhesive layer Anti-metal layer Chip encoding Technical Specifications Optional Chip 125 KHz Temperature-Resistance -22 °F to 356 °F (-30 ºC to 180 ºC) Working Temperature -22 °F to 207 °F. (-30 ºC to 75 ºC) Reading Distance 0 in to 3.93 in (0 cm to 10 cm) Weight 0.018 oz.(0.5 g) Size 0.59 in (1.5 cm)
