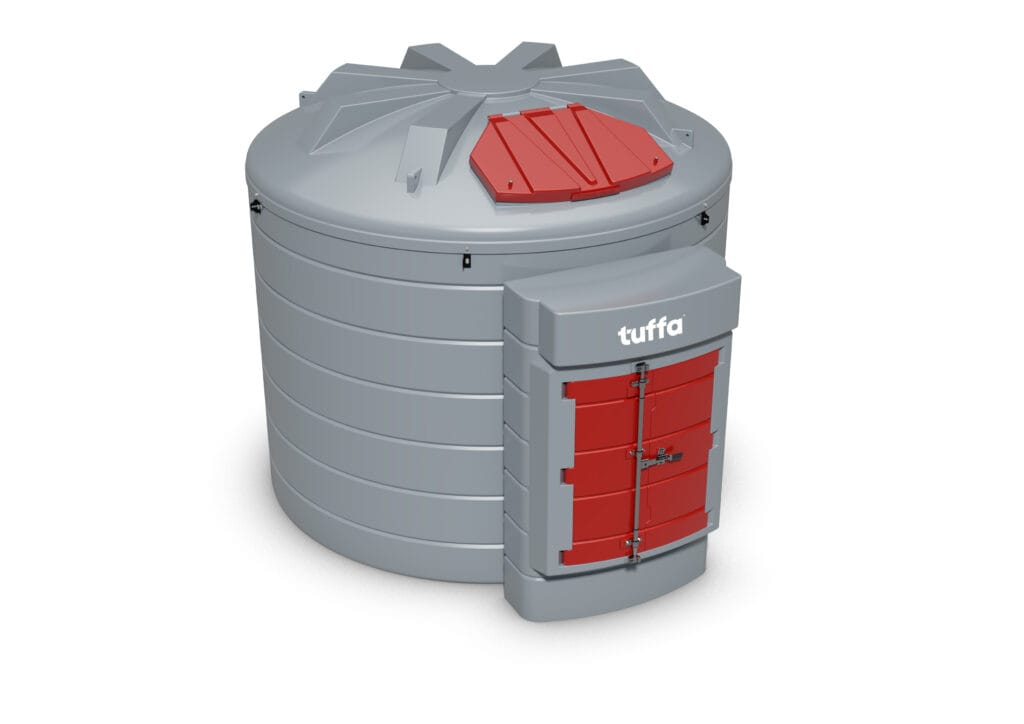

Description Our 10,000-litre plastic bunded diesel tank is an above-ground diesel fuel station consisting of a primary tank (which holds the fuel) surrounded by a bund fitted with a cabinet. The cabinet safely houses tier-one ancillary equipment, including an external pump, K33 mechanical flowmeter, automatic shut-off nozzle and FMS gauge and alarm. Optional extras and upgrades include a fuel management system, pulse meter and high-flow pump. The 10,000-litre plastic bunded diesel tank is complete and ready to use, requiring only a hard, flat concrete base and an electrical connection (if not choosing the 12/24V version). This tank is compatible with white or red diesel and HVO100 or HVO diesel blends. This bunded diesel tank is safe and durable with a 20-year design life and 10-year warranty, when registered. Visuals are for guidance only; final product details may differ. Specification External pump 230V 6m of delivery hose Automatic shut-off nozzle K33 mechanical flowmeter Nozzle holster Control panel with key switch 230V 2″ BSP fill connection with cap and chain Overfill prevention valve Vent FMS gauge and alarm 230V 10-micron water and particulate filtration Lockable cabinet Key benefits Forecourt-style dispensing and convenience Manufactured to prolong the usable life of diesel Fitted with premium ancillary equipment Bunded in accordance with Oil Storage Regulations Made from a highly durable, UV-stabilised, corrosion-resistant and recyclable polyethylene A range of optional extras is available to customise the tank for your site requirements Lockable cabinet prevents theft Serviceable lifespan over 20 years 10-year warranty when registered Compatible with HVO fuel and HVO diesel blends Options K44 pulsed outlet flowmeter – allows connection to a separate fuel management system. Hose reel – a self-retracting hose reel with a 10m delivery hose. Pump options – 12V, 24V, and higher flow rate pumps available upon request. *Higher flow-rate pumps may be supplied with a different nozzle size. Please contact us if you are unsure whether this will be suitable for your requirements. Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank. HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to /-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software. No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment. Downloads Tank Drawing – 10000 Bunded Tank Drawing – 10000 Bunded (with cabinet) Spec Sheet – 10000VBFS AdBlue® and Diesel Tanks Product Guide Cabinet Drawing – Internal Dimensions
