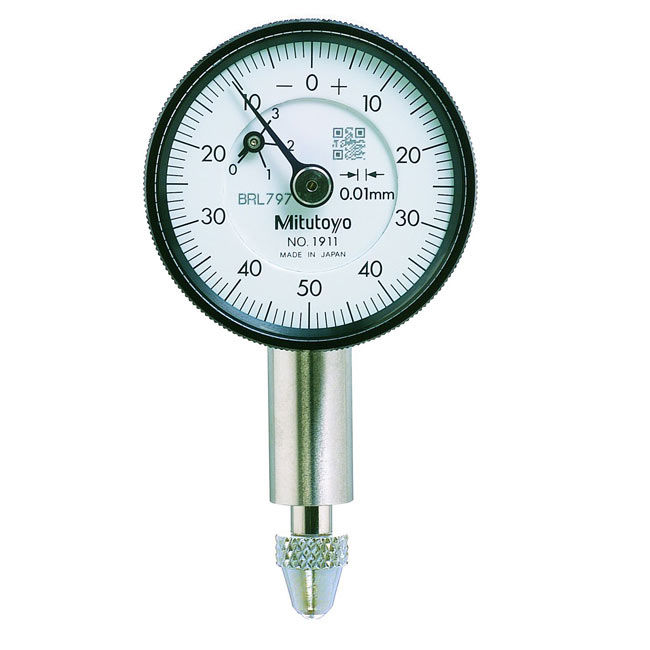

The Mitutoyo 1911T-10 Dial Indicator Series 0 is compact type for working in small areas. This model has a Lug-Back with a range of 2.5mm with 1mm per revolution, 0.01mm graduation and 0-50-0 Dial Reading with an 8mm Stem. Features: Revolutionary stem-bush design for trouble-free stem clamping (longer clamping range). No through screw hole on the frame for high dust-resistance. Involute curved lifting lever for smooth movement of spindle and dovetail joint for tool-less connection. Grater rigidity in the bearing plate for reducing the retracing error (20%) and 4-screw mounting for increasing impact resistance. Model Number Range 1911T-10 2.5 mm
