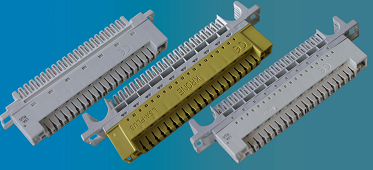

The LSA-PLUS HD180 connection, disconnection and switching PROFIL modules meet the demand for high-density while delivering high-quality connectivity through LSA-PLUS connection technology. The available space is increased by up to 100% over conventional connection systems when using LSA-PLUS HD180 modules.Features and Benefits• Insulation displacement contacts on front and rear• Test tap for permanent connection between incoming and outgoing copper cables• Surge voltage protection available. The active equipment is protected against voltage surges by surge voltage protection magazines. This results in significant cost savings and high service availability• Highest contact reliability using silver-plated IDC contacts• Optimum circuit density with 13.5 mm mounting grid dimension increases the available space by up to 100%• Optional wire routing elements allow wires to be uniquely assigned, thereby preventing incorrect circuit connections• Uses standard LSA-PLUS insertion tool• Application for PROFIL rods with ø12 mm and 95 mm distance
