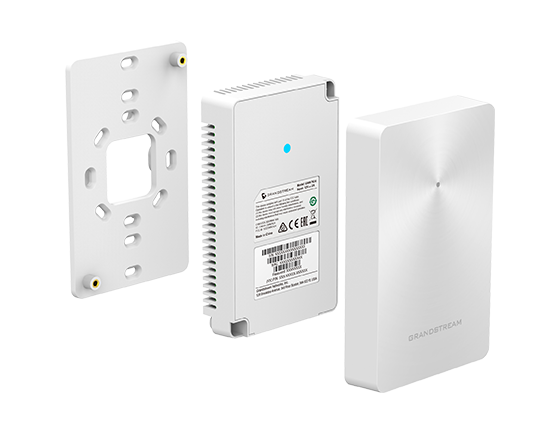

Grandstream GWN7624 In-Wall Wi-Fi Access Point The Grandstream GWN7624 is an in-wall Wi-Fi access point designed for small-to-medium-sized businesses, offices, residential and commercial locations, hotels, and more. Grandstream GWN7624 Key Features: 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO Supports up to 200 concurrent Wi-Fi client devices Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Self-power adaptation upon auto detection of PoE or PoE Embedded controller can manage up to 30 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller Grandstream GWN7624 In-Wall Wi-Fi Access Point – Technical Specifications Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac Antennas: Two 5G & two double frequency internal antennas, 2.4GHz, gain 3dBi; 5GHz, gain 5dBi Frequency Bands: 2.4GHz Radio: 2412 – 2484 MHz 5GHz Radio: 5180 – 5825 MHz *Not all frequency bands can be used in all regions Channel Bandwidth: 2.4G: 20 and 40 MHz, 5G: 20, 40 and 80 MHz Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device MIMO: 2×2:2 2.4GHz(MIMO), 4×4:4 5GHz(MU-MIMO) Coverage Range: Up to 100 meters *coverage range can vary based on environment Maximum TX Power: 2.4G: 23dBm, 5G: 25dBm *Maximum power varies by country, frequency band and MCS rate SSIDs: 16 SSIDs total, 8 per radio (2.4GHz & 5GHz) Concurrent Clients: Up to 200 Network Interfaces: 1x 10/100/1000M uplink Ethernet port with PoE/PoE , 2x 10/100/1000M Ethernet port with PSE, 1x 10/100/1000M Ethernet port Auxiliary Ports: 1x Reset Pinhole Mounting: In-wall mountable LEDs: 1 tri-color LED for device tracking and status indication Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM QoS: 802.11e/WMM, VLAN, TOS SKU: GWN7624 Categories: In-Wall Wifi-access-Point, Wireless Brand: Grandstream
