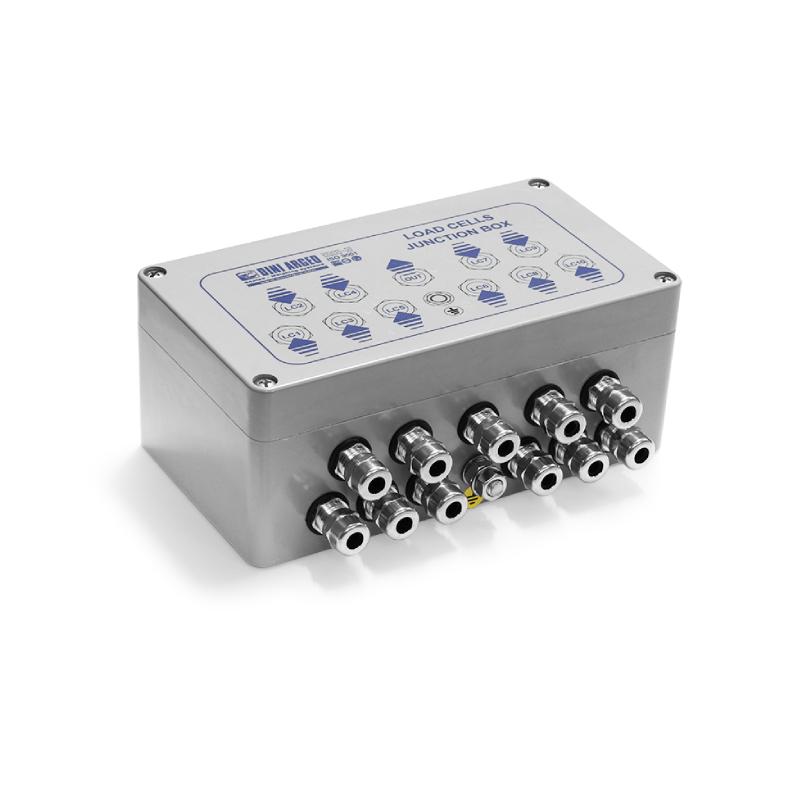

“JB10Q” Equalised Junction Box, With Up To 10 Load Cells
$57.4
$109.06
ANALOGIC “JB10Q” TECHNICAL FEATURES Reinforced polyester case in fiberglass, ideal for harsh environments. 10 1 waterproof metallic cable glands. Surge Arresters against electric discharges and disturbances. IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel). Maximum input voltage: 24Vdc. Maximum input current: 700mA. Maximum input load cell signal: 1000mV. Temperature effect: 50ppm/°C. Compact dimensions (lxwxh): 220x120x90mm. Removable terminals.
