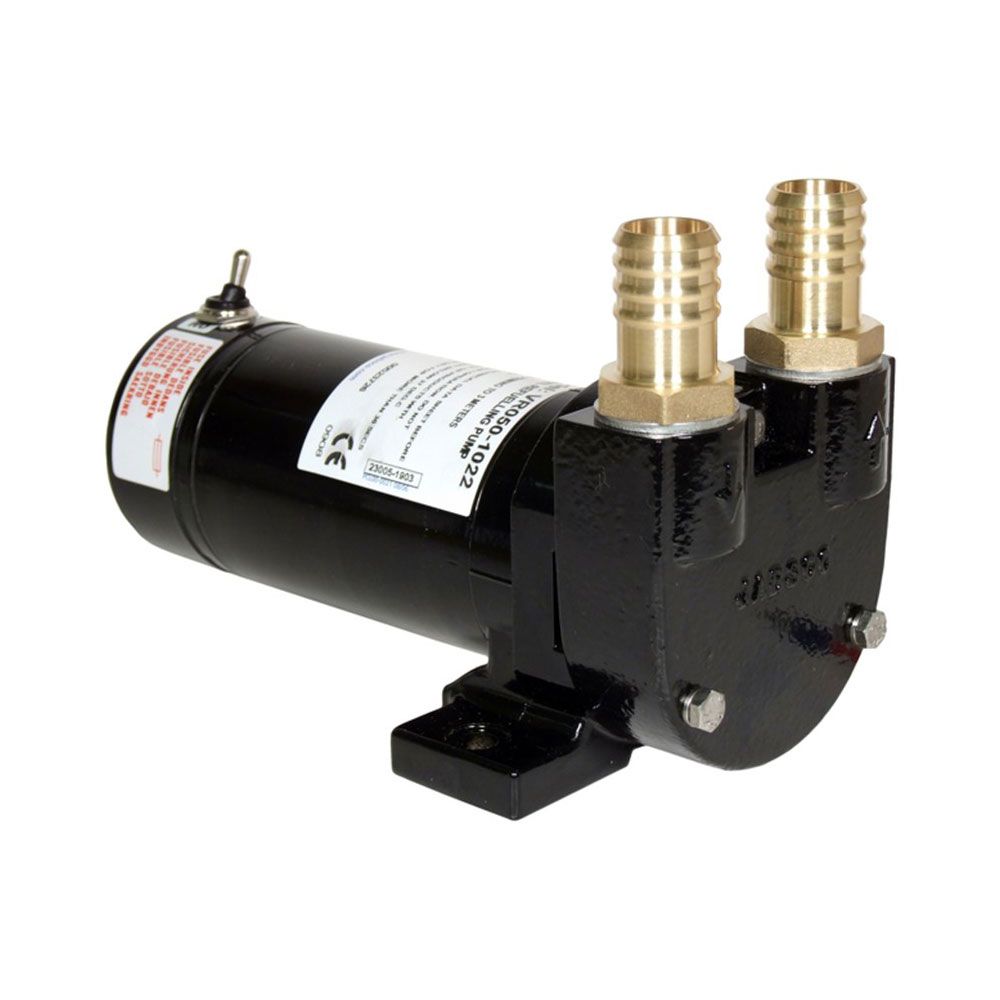

Heavy duty, continuously rated sliding vane pump. Robust cast iron body, bronze sliding vanes. Unaffected by temperature extreams, suitable for use from -30c to 40c. Self priming from dry up to 3 metres vertical lift. For tank capacities from 200 to 500 litres. IP55 motor enclosure. Complete with Switch/fuse holder and 1″ adapters. Output: up to 52 litres per minute ( 11 gallons per minute ) at 3 mtrs head. Maximum recommended total head 10 mtrs. Connections: Use minimum 25mm ( 1″ ) bore hose. Dimensions: 215mm high 130mm wide 65mm high Weight: 5kg Recommended fuse size 12 volt 20 amp / 24 volt 10 amp
