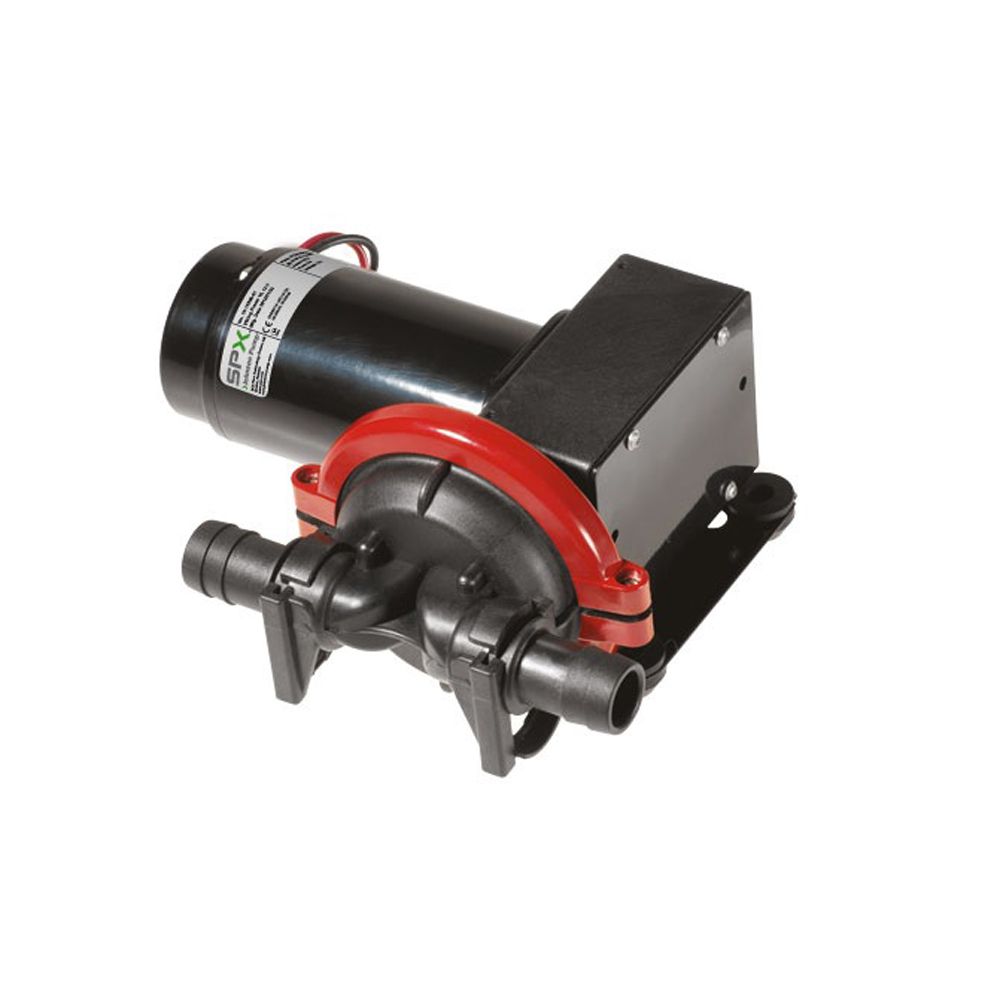

Technical SpecificationsCapacity: 16 LPM (4.2GPM) open flow (15LPM at 0.1 bar)Max. head: 3m (9.8ft)Max. lift: 3m (9.8ft)Max. head and lift: 4m (13.1ft)Dimensions: 186mm long x 235/181mm wide x 118/204mm highConnections: KlickTite connectors for 1″ hose or 3/4″ hose and 1/2″ BSP threads; straight and 90º (optional)Weight: 2.6kg (5.7 pounds)Motor: 2.3 Amp (12V), 1.2 Amp (24V) at 0.1 bar 12/24V DC (with built-in thermal protection)Body: Nylon, glass-fibre reinforcedValves: Nitrile rubberDiaphragm: Reinforced nitrile rubberViking Power 16 Additional Features:• Specifically designed to pump wastewater• Easy to install, even in tight spaces• Easy, low cost maintenance• Non-choke valves – no filters required• Self-priming up to 3m (9.8ft)• KlickTite connectors standard• Low power consumptionPerfect for installation in tight spaces, the Viking Power 16 shower drain pump can be incorporated into a small boat wastewater system in several different pump/motor configurations. Compact, robust and adaptable, this pump can be mounted virtually anywhere on board. The Viking Power 16 has KlickTite connectors fitted as standard, literally making hose connections a snap!Grey Water Tank for this pump can be found here.
