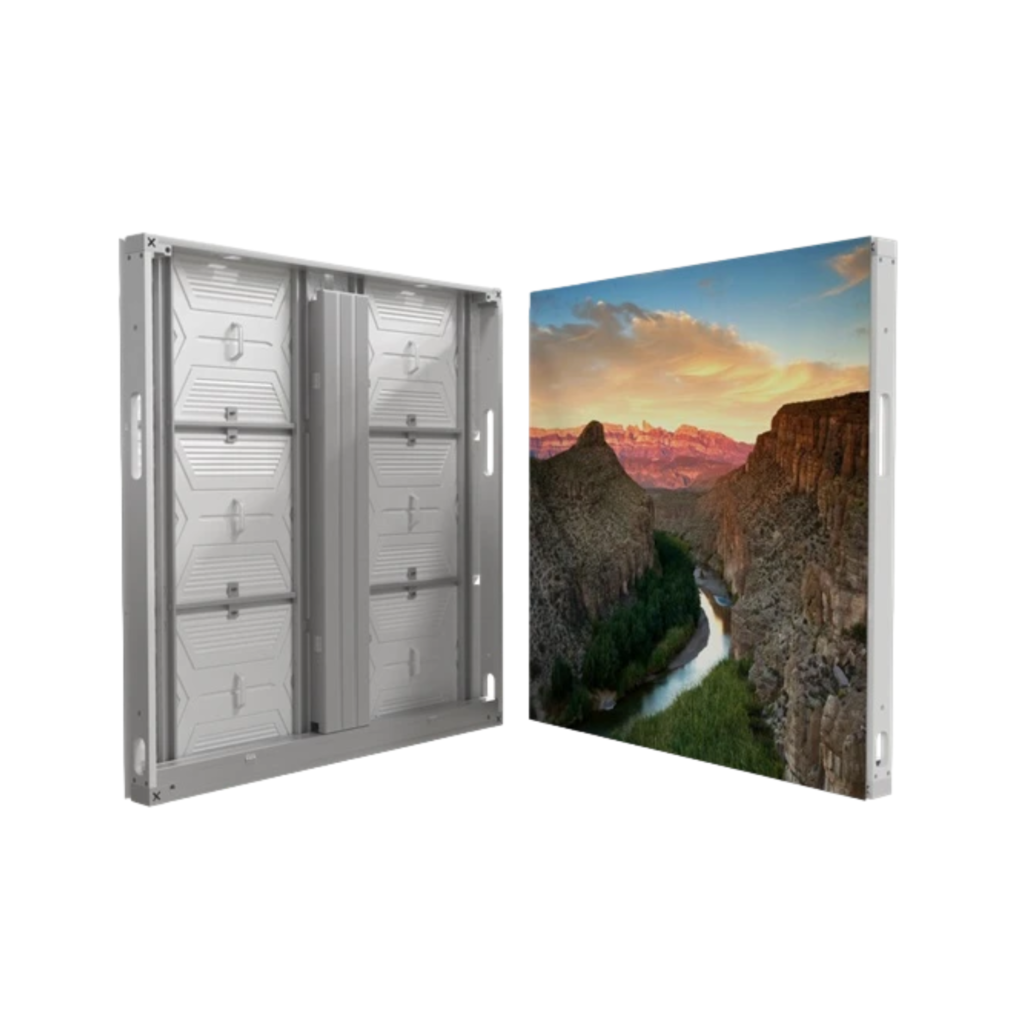

IP66 Outdoor Front and Rear Access LED Display FA1 Pro

IP66 Outdoor Front and Rear Access LED Display FA1 Pro IP66 Outdoor Front and Rear Access LED Display FA1 Pro Item P2.9 P3.9 P4.8 Pixel Pitch 2.9mm 3.9mm 4.8mm LED Type SMD1415 SMD1921 SMD1921 Module Resolution 84dots×84dots 64dots×64dots 52dots×52dots Driving Mode 1/14scan 1/8scan 1/7scan Module Pixels 7056dots 4096dots 2704dots Module Size 250mm×250mm 250mm×250mm 250mm×250mm Cabinet Size(mm) 500×500×82/500×750×82/500×1000×82 500×500×82/500×750×82/500×1000×82 500×500×82/500×750×82/500×1000×82 Cabinet Resolution 168dots×336dots 128dots×256dots 104dots×208dots Pixel Density 112,896dots/㎡ 65,536dots/㎡ 43,264dots/㎡ Minimum Viewing Distance ≥2.9 m ≥3.9 m ≥4.8 m Brightness 4500nits ~ 5500nits 5500nits- 6000nits 5500nits- 6000nits IP Grade IP66 IP66 IP66 Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz Gray Scale 14bits~22bits 14bits~22bits 14bits~22bits Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160° Maximum Power Consumption 620W/m² 620W/m² 620W/m² Average Power Consumption 160W/m² 160W/m² 160W/m² Input Voltage AC110V-220V@ 50Hz/60Hz AC110V-220V@ 50Hz/60Hz AC110V-220V@ 50Hz/60Hz Operating Temperature ﹣20℃～60℃ ﹣20℃～60℃ ﹣20℃～60℃ Operating Humidity 10%~90% 10%~90% 10%~90% Cabinet Material Aluminum Aluminum Aluminum Cabinet Weight 23kg/sqm 23kg/sqm 23kg/sqm Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Signal Source Compatibility DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. Arabland ARAB LAND SOLUTIONS is a pioneer in sustainable solutions, offering a comprehensive range of products and services to help businesses achieve their environmental goals. Our innovative offerings include: Renewable Energy Systems: Harness the power of the sun and wind with our solar panels and wind turbines, providing clean, renewable electricity for your operations. Waste Management Solutions: Reduce your environmental impact and save costs with our efficient waste management solutions, including recycling programs, composting systems, and waste reduction strategies. Water Conservation Strategies: Conserve precious water resources with our advanced water treatment plants, rainwater harvesting systems, and efficient irrigation technologies. Sustainable Building Technologies: Create eco-friendly and energy-efficient buildings with our sustainable construction materials, green roofs, and innovative building practices. At ARAB LAND SOLUTIONS we are dedicated to providing tailored solutions that meet the specific needs of your business while contributing to a sustainable future. Our expertise and commitment to environmental stewardship make us your trusted partner in achieving a greener tomorrow. ARABLAND ADVERTISING, Musaffah-26, Near American Church Abu Dhabi, UAE. [email protected] Share this: Share on Facebook (Opens in new window) Facebook Share on X (Opens in new window) X More Share on WhatsApp (Opens in new window) WhatsApp
