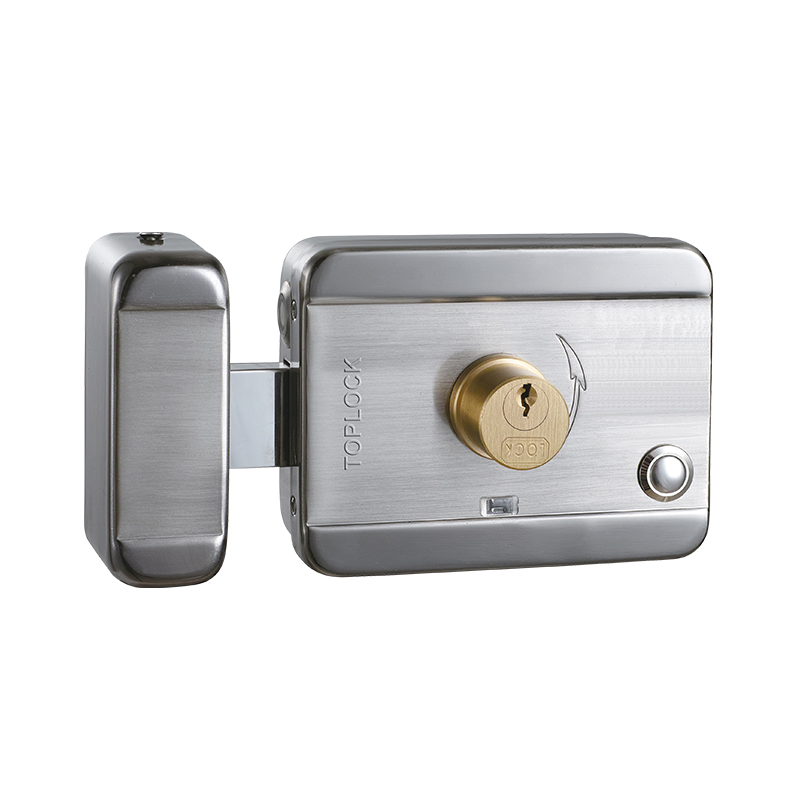

TL06-DSB Intelligent Electric Rim Door Lock Factory

Description Product Paremeter MaterialIron FinishingNickel plating CylinderDouble cylinders ButtonIron button MotorStepping motor Locking wayBy magnet induction Unlock wayBy keys, button, electric pulse Lock size131.5L * 100W * 43H (mm) VoltageDC12V Start current350mA Standby current25mA Operating temp-20℃ ~ 55℃ (-4℉ ~ 131℉) Operating humidity0 ~ 90% (Non condensing) Cycles test500, 000 operations Suitable forresidential buildings, offices, schools, factories, warehouses, etc., and can be used with electronic controlled anti-theft security door Dimensions TL06-DSB Intelligent electronic lock Size Advantages Automatically intelligent electronic lock by the magnetic sensor, high sensitivity sensor, and low noise lock.The length of the electronic motor lock tongue＞20mm, meet GA/T73-94 5.1.6B standardOur intelligent electric motor locks with a stepping motor are more stable, and longer life (more than 500,000 cycles)The intelligent locks design automatically detects the door status, and automatic process to open and close the door.If don’t push the door after unlocking it, automatically locked again in 6 secondsLow energy consumption, environmentally friendly.Compatible with building system of entrance guard system, etcSuitable for wooden doors and metal doors, universal for left, right, inward, and outward opening doors.Widely used in intelligent communities, factories, warehouses, base stations, building intercoms, and intelligent access control systems.
