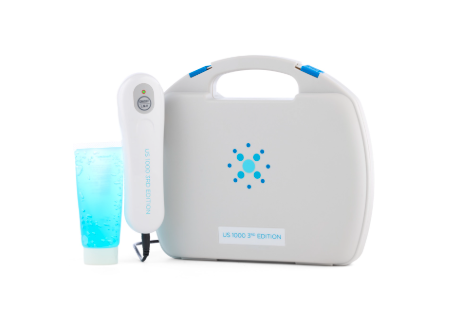

The US 1000 3rd Edition Portable Ultrasound offers effective ultrasound therapy by generating deep ultrasonic waves within body tissues to treat pain, muscle spasms and joint stiffness. This device comes with three power output settings to allow for customized treatment. Sound waves created by the device cause vibration in soft tisse cells, increasing temperature, and inducing vasodilation, to provide needed relief. The portable unit comes as a complete kit with carrying case, AC adapter, ultrasound gel and manual. Therapeutic ultrasound device that generates deep heat to effected area Device must be used with ultrasound gel to conduct the ultrasound energy to the skin Three power output settings Comes complete with ultrasound, AC adapter, carrying case, ultrasound gel and instruction manual One-year manufacturer warranty on unit Technical Specifications: Waveform: Pulse Power Supply: Switch adapter (Input AC100-240V, 50/60 Hz, Output: DC24V/0.2A) Dimensions: 6.8″ x 2.25″ x 1.65″ Weight: 4.25 ounces Pulse Width: 8% .5ms /- 10% 14% 1ms /-10% 29% 2ms /- 10% Frequency: 1MHz /-10% Repetition Rate: 150 Hz /- 10% Temporal Maximum Power: 4W /- 20% Effective Radiating Area (ERA): 6.16 square cm /- 20% Auto-time setting: 30 minutes Output Intensity: Low 8%, Medium 14%, High 29%
