Bierer Distribution/Transmission Voltage Detector Kit 999KV (Direct Contact); VD1000P
$72.23
$131.45

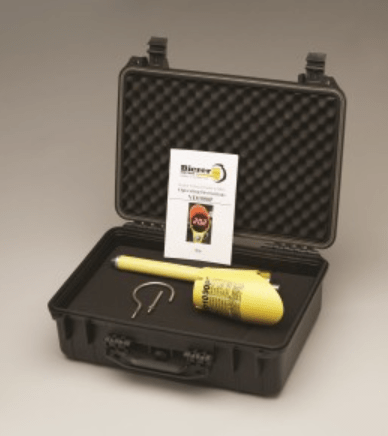

The VD1000P is a direct contact, capacitive type voltage detector for use on voltages from proximity to 99.9kV on distributions circuits and 999kV on Transmission conductors. The VD1000 indicates Line-to-Ground values. Each unit has a five position switch for the following functions: OFF Use this position for Storage and Transit P Non-Contact, Sensing Presence of Voltage from the Ground URD Direct Contact, Underground Primary (01.0 – 99.9) OH Direct Contact, Overhead Lines (01.0 – 99.9) OHT Direct Contact, Substation & Transmission Lines (001 – 999) This unit incorporates a self-test feature each time the selector switch is turned to another position displaying the battery voltage. A reading less than 07.0 indicates low battery. Includes: 1kV – 999kV digital voltage detector with proximity test Hook probe Straight probe Universal/grip-all adapter Manual Case
