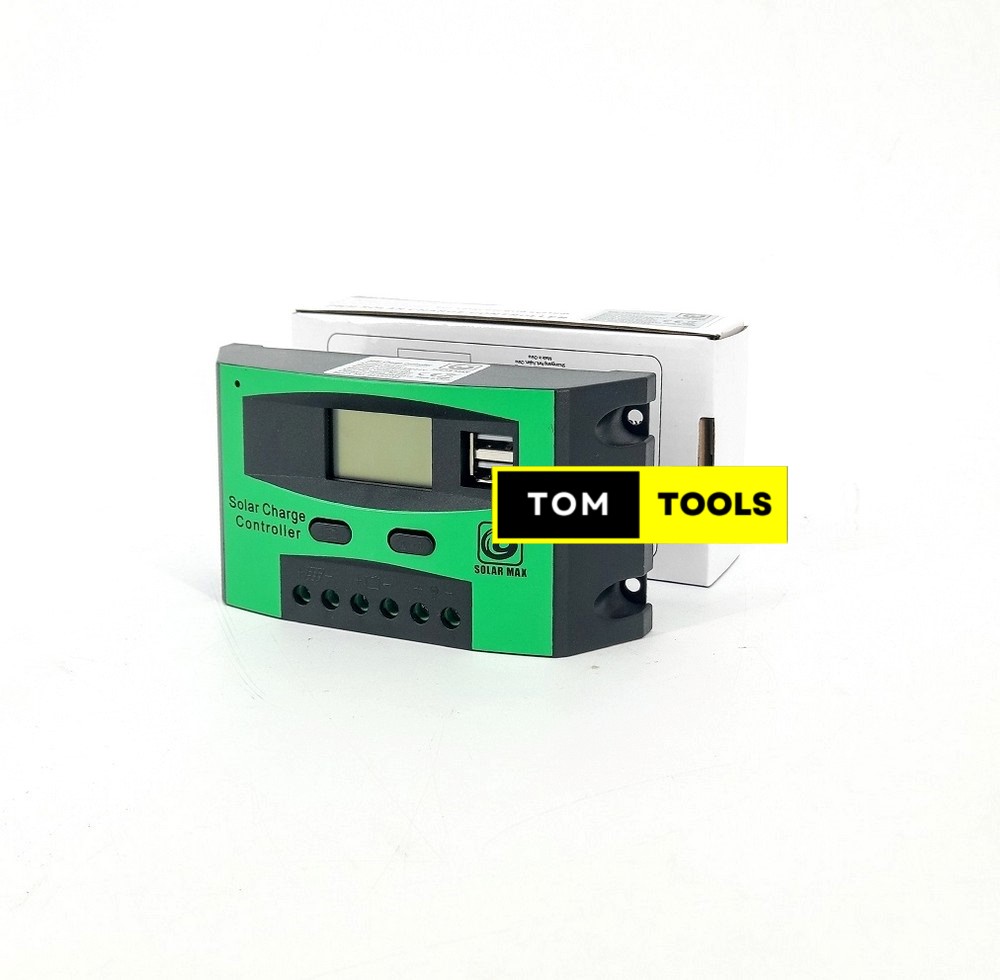

– Intelligent and multi-functional controller designed for off-grid applications and can be used with a 12V or 24V battery or system – Smart PWM charging and temperature compensation to increase battery life and improve system performance. – Comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. – Automatically detects if the setup is 12V or 24V – When installing for the first time, please make sure the battery has sufficient voltage so that the solar charge controller can recognize the normal battery type. – Solar Charge Controller should connect the battery first, and then connect the solar panel, and finally the load. The disassembly sequence is contrary to the wiring order. – System voltage: 12V/24V – System amperage: 10A – Control mode: PWM pulse modulation – Battery display: yes – USB output: 5V/2A – Standby current: less than 10ma
