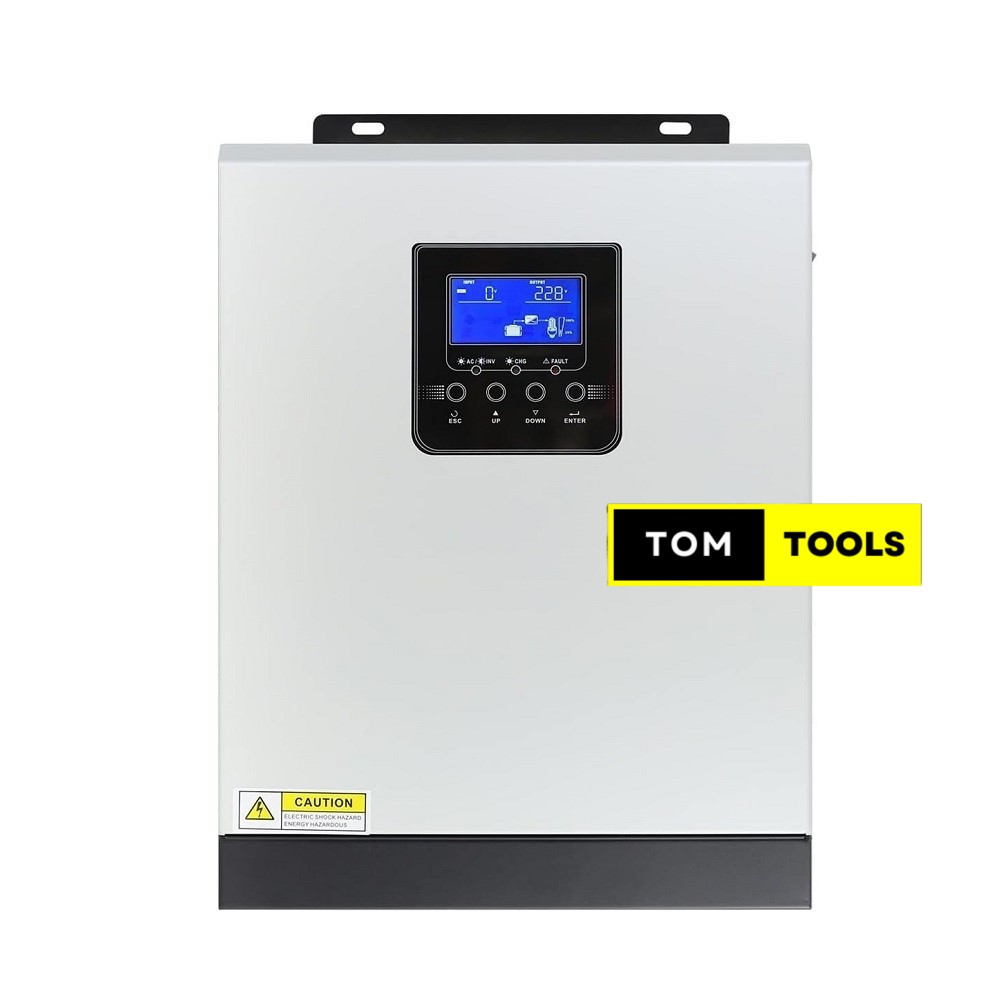

3000W 24V 3KVA Pure Sine Wave Off-Grid Solar Inverter Charger

– All in one electrical combination of 3,000watts DC 24V to AC 230V pure sine wave inverter, 80A MPPT solar charge controller, 60A AC to DC battery charger and automatic transfer switch. – Compact and lightweight – Intelligent auto-wake up MPPT charge controller – Automatic over-load bypass – Auto-recovery from over-load/over-temperature/low-battery cut-off – Programmable LCD menu – 4 charging modes – 3 output power priorities, switchable frequency (50Hz or 60Hz) – Remote monitoring and control – Stackable capability for large system scaling, single phase 230V AC in PARALLEL up to 6 inverters – Reliable and compatible with lead-acid and lithium battery types – Continuous Output Power: 3000 Watts – Wave Form: Pure Sine Wave – Output Voltage: AC 230V – Nominal Efficiency: 93% (Peak) – Line Mode Efficiency: >95% – Output Frequency: 50Hz / 60Hz /- 0.3Hz – THD: <10% – Power Factor: 1 – Color: White – Operating Temperature Range: -10 to 50C – Inverter Mode Rated Power: 3000VA/3000W – DC Input: 24VDC, 136.4A – Power Factor: 1 – AC Output: 230VAC, 50Hz, 13.1A – AC Input: 230VAC, 50Hz, 20A – DC Output: 27VDC – Max.80A, Default 30A – AC Output: 230VAC, 50Hz, 13.1A – Max. Power: 3000W – Norminal PV voltage: 330VDC – Operating Voltage Range: 60-450VDC. – Max Solar Voltage(VOC): 500VDC
