Klein 16477-20: Wide Range Distribution Grip w/ Hot Latch (0.162″ to 0.883″)

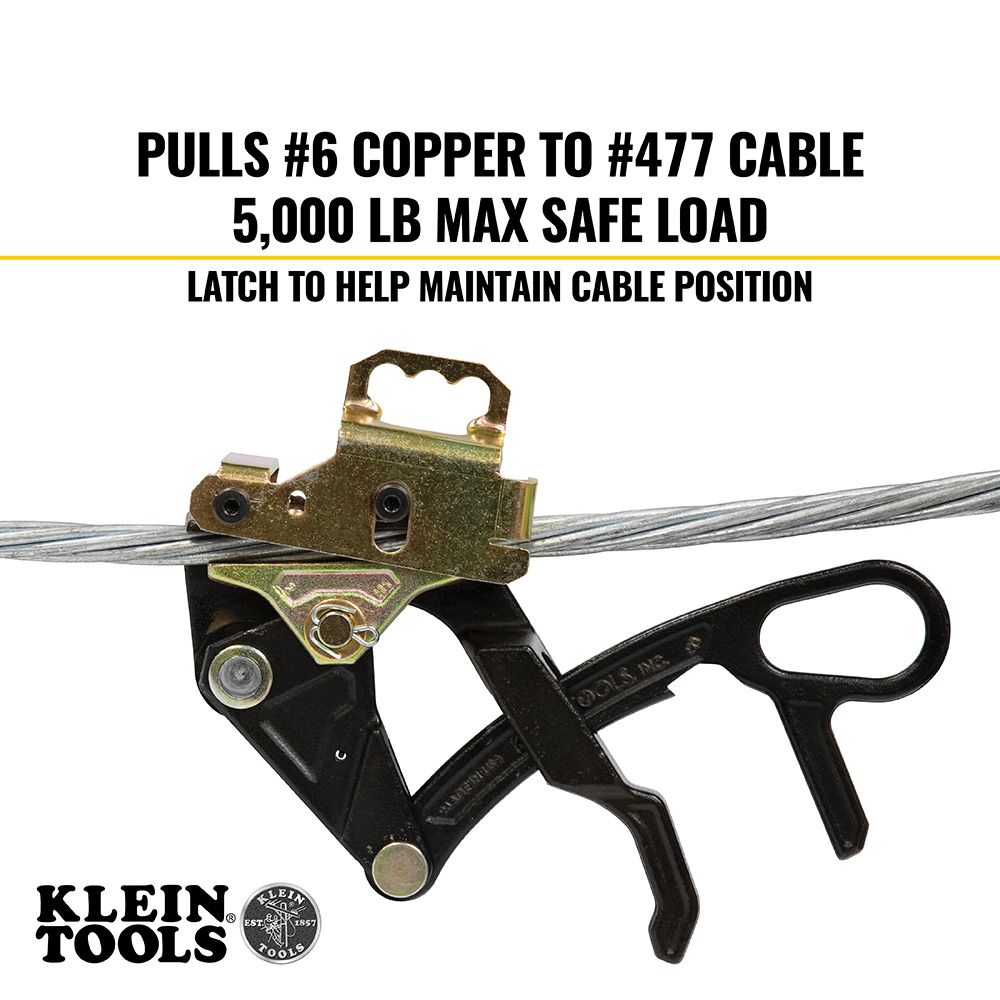

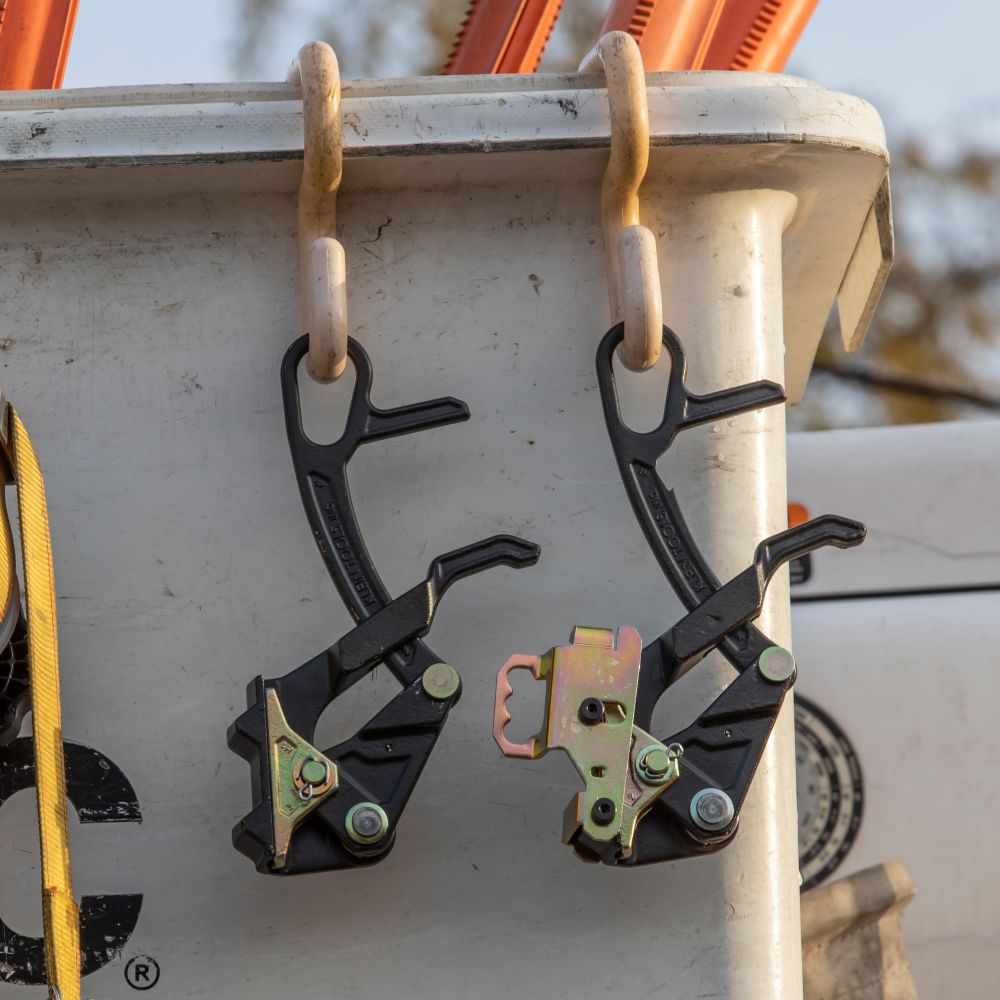

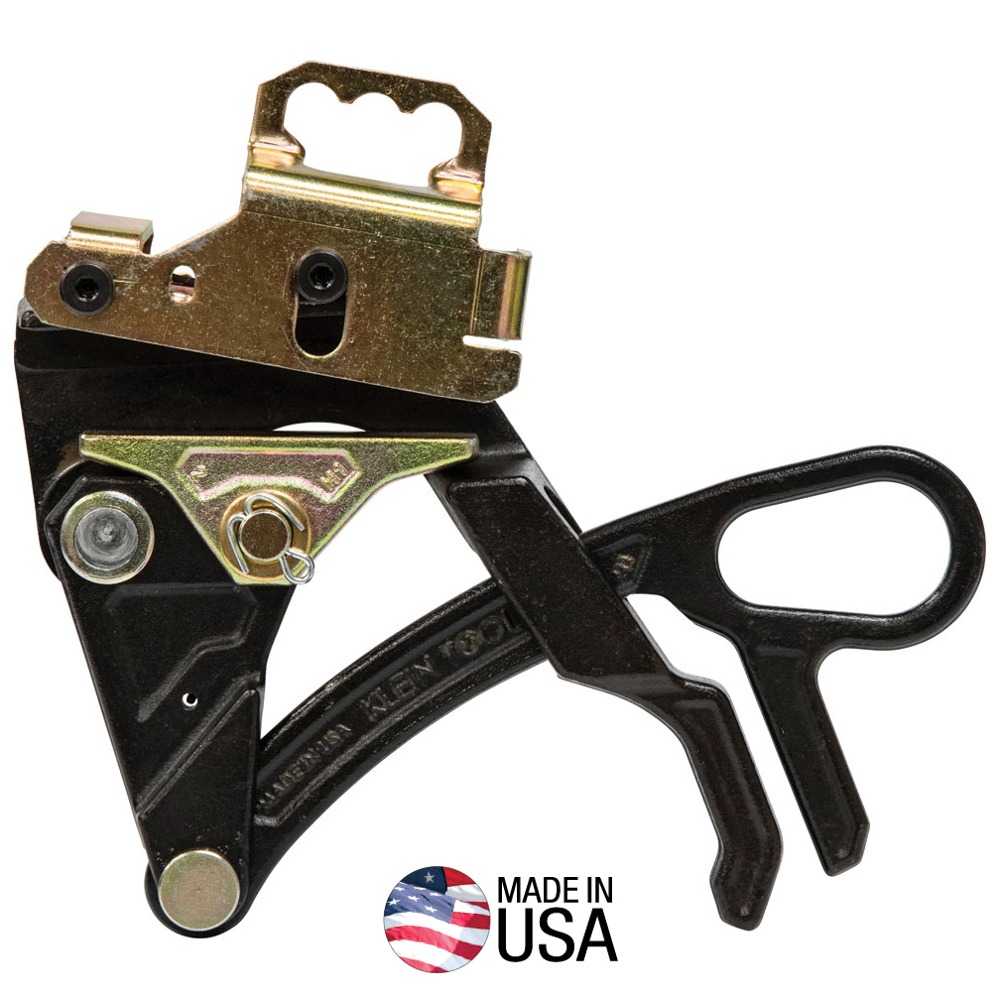

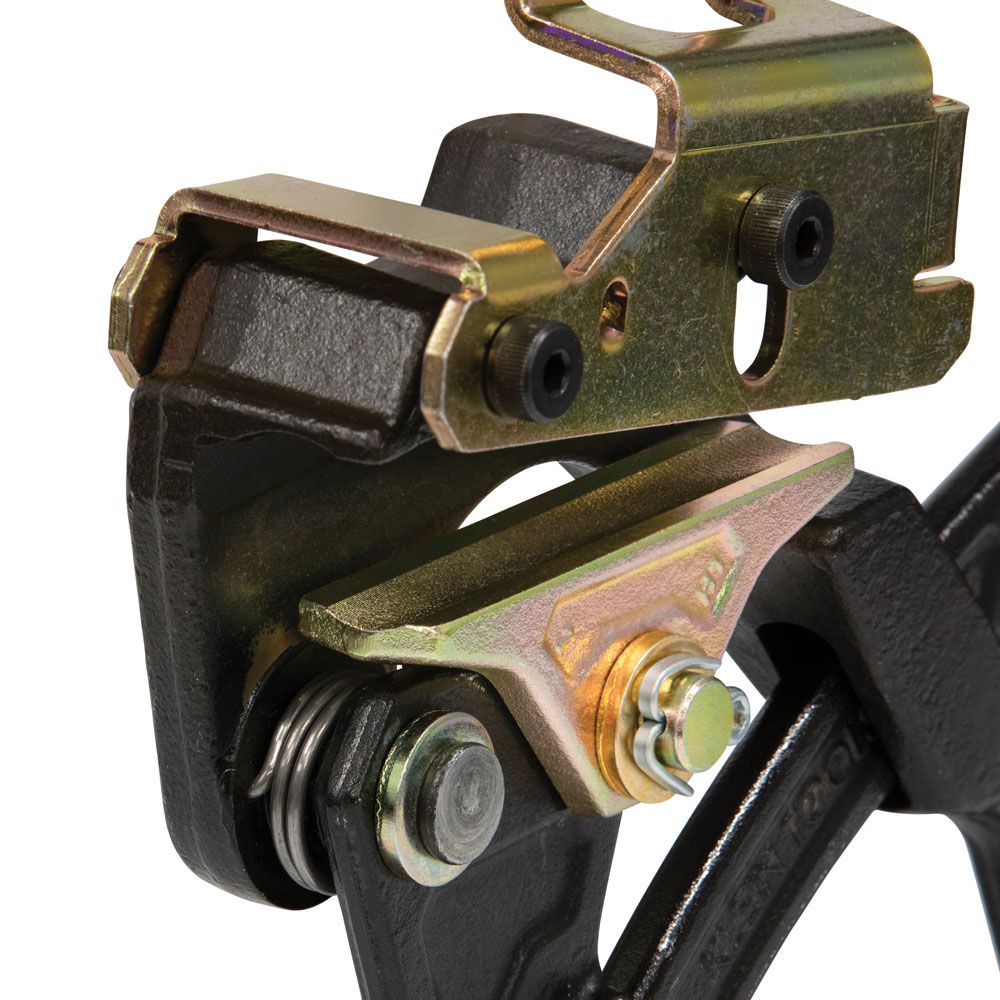

Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable 20-Percent lighter than the Cat. No. KT4500 grip One-handed design makes for easier actuation Made in the USA Spring closes grip on cable to hold the initial position Includes a latch to help maintain cable position in the grip jaw Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks Max Safe Load of 5000-Pound (2268 kg) Patent pending design   Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than the Klein’s Cat. No. KT4500 grip with easy, one-handed actuation. Design includes a latch to help maintain cable position in grip jaws. Made in the USA, this grip has a maximum safe load of 5000-Pound. Specifications Type: Parallel Jaw Grip Application: Wire Pulling Special Features: Hot Latch Overall Length: 10.25” (26 cm) Overall Height: 8” (20.3 cm) Overall Width: 1.75” (4.4 cm) Material: Steel Cable Type: Bare Copper, Aluminum, ACSR Cable Diameter: 0.162 to 0.883” (4.11 to 22.42 mm) Hot Latch: Y Swing Latch: N Spring: Y Locking Handle: Y Jaw Type: Round Jaw Length: 3.31” (8.4 cm) Maximum Safe Load: 5000 lb (2268 kg) Weight: 3.2 lb (1.5 kg)
