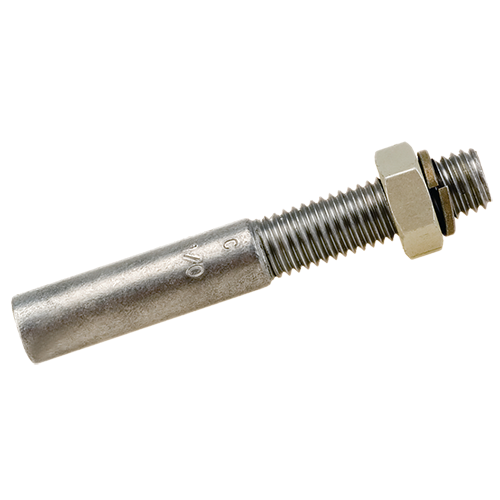

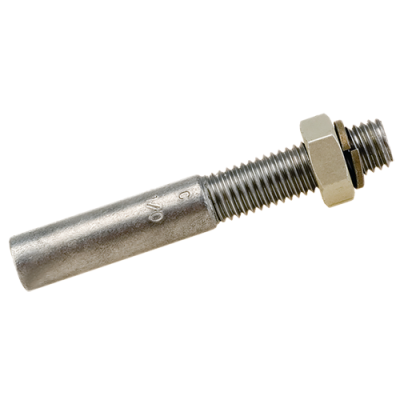

Chance C6002620 Grounding Ferrule for 2/0 Cable (Shrouded)- Threaded or Drilled ALUMINUM Terminal
$70.56
$112.19
Chance Shrouded ferrules overlap onto the grounding cable jacket for stress relief to the terminal. Two crimps secure the ferrule against the bare strands and one crimp applies on the jacket. Available either factory-installed in pairs on any cable length specified or as separate individual units, the ferrules install simply with a hydraulic crimping tool. Complete illustrated installation instructions come with the ferrules and include a table for the crimping die sizes to use. Aluminum Grounding Ferrule Product Specifications Product Type Ferrules Cable Size 2/0 Material Aluminum Terminal Type Threaded or Drilled Shroud Shrouded Continuous Current 300 Amps Fault Current – 15 cycles 27,000 Amps Fault Current – 30 cycles 20,000 Amps Section A Burndy Die Number U165 Section B Burndy Die Number U-L Material Type Non-Standard UPC Code 09635923313 Standard Package 10 Standard Package Unit Each Min Order Qty 1 Weight / Ea. 0.186 lbs WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
