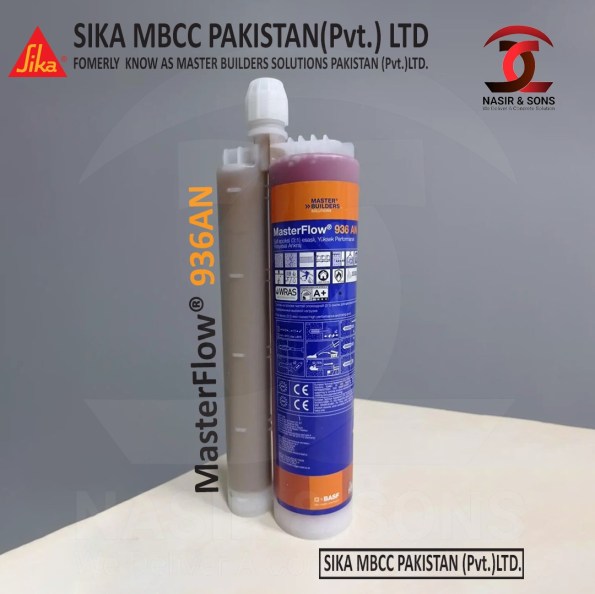

TYPICAL APPLICATIONS  Structural applications in cracked and uncracked concrete applications in seismic zones (C1 and C2)  Post installed rebar connections  Crash barriers  Structural steel APPROVALS & TESTS  ETA according ETAG 001 Part 1 & 5 Option 1 for anchoring of threaded bars into cracked & uncracked concrete application in seismic zones (C1 and C2)  ETA according to TR023 for post-installed rebar connections  Tested according to LEED 2009 EQ c4.1, SCAQMD rule 1168 (2005)  Fire resistance F240 for reinforcing bars  A as per French VOC Regulation  WRAS – Suitable for use with potable water   ADVANTAGES  Fixings close to free edges  Fire tested  Versatile  Anchoring without expansion pressure  Ultra High load capacities  Available in side-by-side cartridges  Component volume ratio of 3:1  Extended gel/open time  Suitable for diamond-drilled holes  Suitable for dry and wet holes PACKAGING MasterFlow 936 AN is available in boxes of 12 side-by-side cartridges of 585 ml. APPLICATION GUIDELINES Please refer to the method statement or contact Master Builders Solutions Technical Services department. European Technical Assessment 15. 1020. ETA 15/0602. BASF Construction Solutions GmbH. MasterFlow 936 AN. DoP MF936ANTR023. ETAG 001-Part 1 and Part 5 used as an EAD. For fixing and/or supporting concrete structural elements or heavy units such as cladding and suspended ceilings. European Technical
