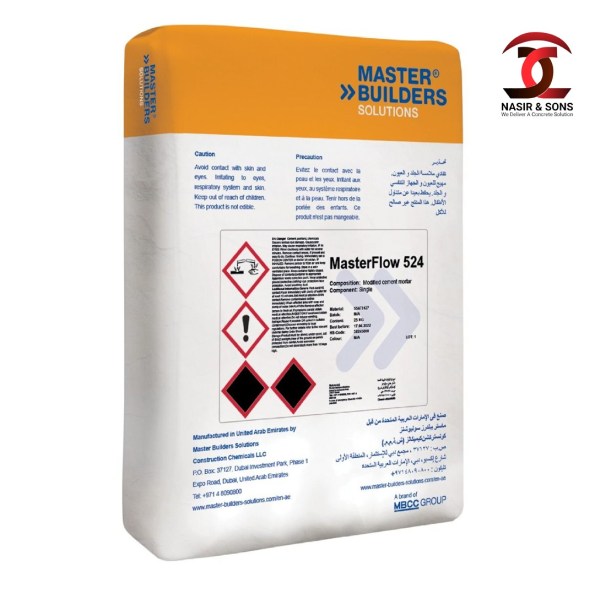

MasterFlow® 524 (Formerly known as Masterflow 524M) | NASIR & SONS SIKA MBCC PAKISTAN

High strength, non-shrink, cementitious construction grout   APPLICATIONS : MasterFlow 524 is formulated for use at plastic or flowable consistency, and may be used with confidence for bedding, grouting and void filling operations. ADVANTAGES :  Non-shrink  Adjustable consistency  Proven and predictable performance  High bond strength to steel and concrete  Early strength development  Impermeable   TYPICAL PROPERTIES Water addition Flowable 3.2ltr/30kg Plastic 2.75ltr/30kg Density Flowable 2230kg/m³ Plastic 2350kg/m³ Free expansion: 2-4% Restrained expansion: 0-0.4% Compressive Strength N/mm² ASTM C-109: Flowable at 3.2ltr/Bag 1 day 17-19N/mm² 3 days 20-25N/mm² 7 days 30-35N/mm² 28 days 40-45N/mm² Flexural Strength N/mm² BS 6319 Part 3: Flowable 28 day 5.95 Tensile Strength N/mm² BS 6319 Part 7: Flowable 28 day 3.04 Water penetration DIN 1048 Part 5: Nil APPLICATION PROCEDURE PREPARATION: The surface onto which the grout is to be applied should be scabbled to remove laitance and expose aggregate. Do not use bush hammers or similar preparation equipment that can crush the aggregate but leave it in place. The surface must be free of oil, dust, dirt, paint, curing compounds or other contaminants that could impair adhesion. Soak area to be grouted to minimise absorption. Surfaces should be damp but free of standing water. Particular attention should be paid to bolt holes to ensure that these are water-free. Use oil free compressed air to blow out bolt holes and pockets as necessary. Base plates, bolts etc. must be clean and free of oil, grease and paint. Set and align equipment. If shims are to be removed after the grout has set, then lightly grease them for easy removal.Ensure formwork is secure and watertight to preventmovement and leaking during the placing and curing of the grout
